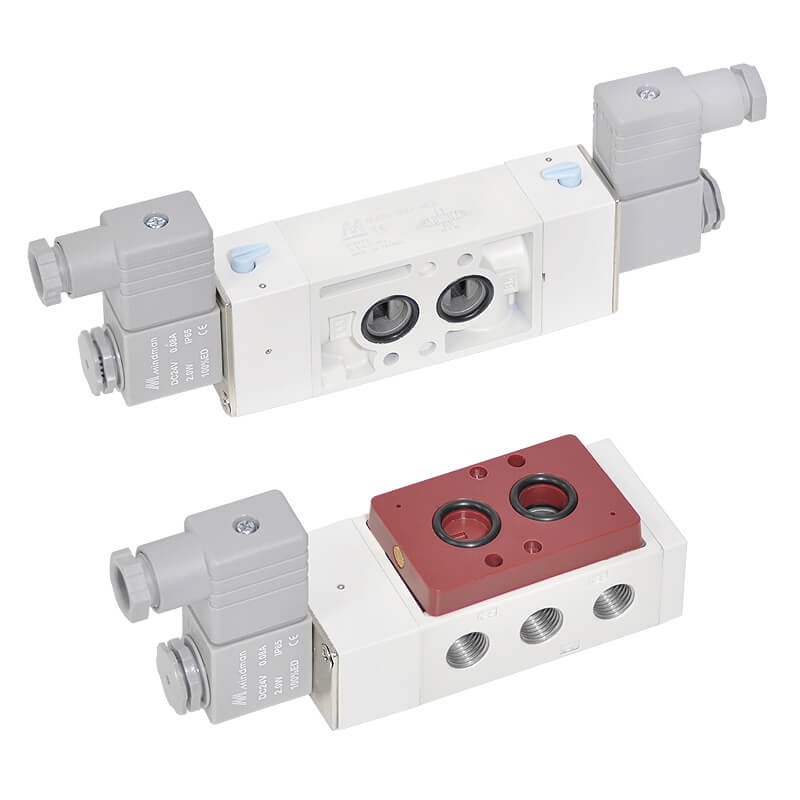

Niscon MVSN-300 Series: NAMUR Solenoid Valve - MVSN-300-4E2-DC24-E

Description

NAMUR Solenoid Valve,Body Width:4-Way (5-Port),Solenoid Type:Double Solenoid,Number of Positions:2-Position,Port Size:G1/4,Number of Ports:5-Port,Operating Fluid:Air,Withstand Pressure:1MPa,Response Time:50ms,Ambient Temperature:-5 to +50°C (Non-Freezing),Voltage Tolerance Range:±10%,Insulation Class:Class F,Effective Sectional Area:35mm²,Operating Pressure Range:0.2~0.8MPa,Rated Voltage:DC24V,Connector Type:Explosion-Proof (Black Solenoid),Weight:507g

Features

  • Body width: 30 mm
  • Port size code: 8A
  • Valve types: 5-port 2-position, 5-port 3-position
  • Body style: direct piping type
  • Port size: G1/4
  • Fluid: air
  • Operating pressure range: 0.2~0.8 MPa, 0.3~0.8 MPa (5/3)
Product form

NAMUR Solenoid Valve,Body Width:4-Way (5-Port),Solenoid Type:Double Solenoid,Number of Positions:2-Position,Port Size:G1/4,Number of Ports:5-Port,Operating Fluid:Air,Withstand Pressure:1MPa,Response Time:50ms,Ambient Temperature:-5 to +50°C (Non-Freezing),Voltage Tolerance... Read more

SKU: MVSN-300-4E2-DC24-E

$92.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    NAMUR Solenoid Valve,Body Width:4-Way (5-Port),Solenoid Type:Double Solenoid,Number of Positions:2-Position,Port Size:G1/4,Number of Ports:5-Port,Operating Fluid:Air,Withstand Pressure:1MPa,Response Time:50ms,Ambient Temperature:-5 to +50°C (Non-Freezing),Voltage Tolerance Range:±10%,Insulation Class:Class F,Effective Sectional Area:35mm²,Operating Pressure Range:0.2~0.8MPa,Rated Voltage:DC24V,Connector Type:Explosion-Proof (Black Solenoid),Weight:507g

    Features

    • Body width: 30 mm
    • Port size code: 8A
    • Valve types: 5-port 2-position, 5-port 3-position
    • Body style: direct piping type
    • Port size: G1/4
    • Fluid: air
    • Operating pressure range: 0.2~0.8 MPa, 0.3~0.8 MPa (5/3)
