Description
Vacuum Pad Component (Ring Sponge),Foam Pad Size:4730 (Outer Size X:470 Y:300,Inner Side x:390 y:220),Foam Suction Pad Width:40mm,Foam Pad Material:Silicone (10°),Vacuum Generator:3 Nozzles 760 l/min,Sensor:Digital Pressure Sensor NPN (SW2 Analog Output)
Features

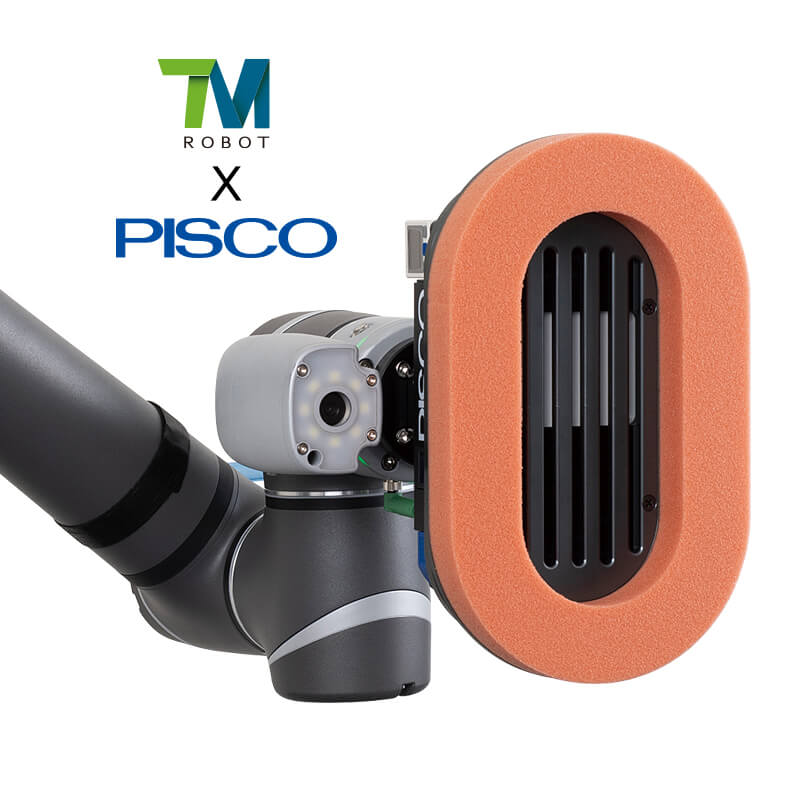

- Suitable for robot arms handling large workpieces by vacuum
- Three suction face versions: sponge (ring type and full sponge) and suction cup array
- Built-in high-flow vacuum generator, with a maximum suction flow rate of 760 l/min guaranteed (rated value for the 3 built-in ejectors).
- A version for use with a vacuum pump is also available
- Once the robot arm flange mounting plate is fixed to the arm, the unit simply slides into place for easy installation
