Mindman RLG Series: Three-Point Positioning Sensor - RLG-3P-2M

Description

Three-Point Positioning Sensor,Model:RLG-3P(3 PNP),Measuring Range:50mm,Cable Length / Connector:2000mm,Applicable Gripper Model:MCHC-6/MCHD/MCHH/MCHU/MCHS/MCHX/MCHG2/MCHJ/MCHY2/MCRT

Features

  • Switching logic: electronic solid-state, switchable normally open / normally closed
  • Contact type: solid-state NPN, 3-point positioning; solid-state PNP, 3-point positioning
  • Operating voltage range: 5 ~ 30 V DC
  • Maximum switching current: 150 mA max. (*2)
  • Supply voltage: 30 V DC (*2)
  • Contact capacity: 4.5 W max. (*2)
  • Current consumption: 20 mA @ 24V DC max.
  • Internal voltage drop: 1.5 V max. (with resistive load) (*2)
  • Leakage current: 0.01 mA max.
Product form

Three-Point Positioning Sensor,Model:RLG-3P(3 PNP),Measuring Range:50mm,Cable Length / Connector:2000mm,Applicable Gripper Model:MCHC-6/MCHD/MCHH/MCHU/MCHS/MCHX/MCHG2/MCHJ/MCHY2/MCRTFeatures Switching logic: electronic solid-state, switchable normally open / normally closed... Read more

SKU: RLG-3P-2M

$76.50 Excl. VAT

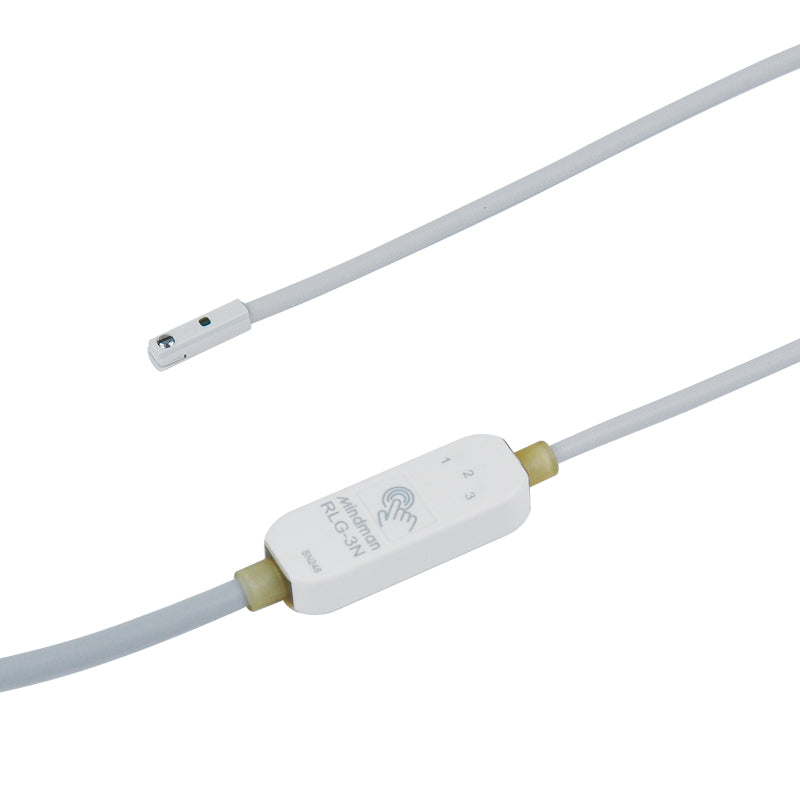

    • Image may not be representative of actual product.

    Description

    Three-Point Positioning Sensor,Model:RLG-3P(3 PNP),Measuring Range:50mm,Cable Length / Connector:2000mm,Applicable Gripper Model:MCHC-6/MCHD/MCHH/MCHU/MCHS/MCHX/MCHG2/MCHJ/MCHY2/MCRT

    Features

    • Switching logic: electronic solid-state, switchable normally open / normally closed
    • Contact type: solid-state NPN, 3-point positioning; solid-state PNP, 3-point positioning
    • Operating voltage range: 5 ~ 30 V DC
    • Maximum switching current: 150 mA max. (*2)
    • Supply voltage: 30 V DC (*2)
    • Contact capacity: 4.5 W max. (*2)
    • Current consumption: 20 mA @ 24V DC max.
    • Internal voltage drop: 1.5 V max. (with resistive load) (*2)
    • Leakage current: 0.01 mA max.
