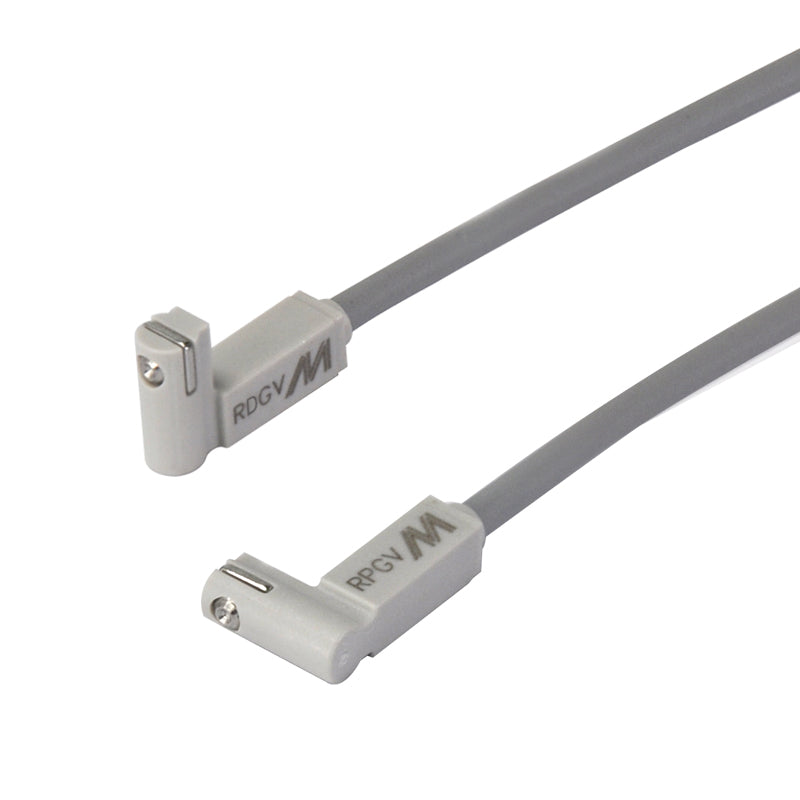

Mindman RDGV Series: Sensor (Solid State PNP) - RPGV-QD

Description

Sensor,Solid State PNP,Wiring Type:3-Wire Type,Lead Wire Type:Vertical Lead Wire Outlet,Cable Length:M8 3Pin Connector Type

Features

  • Wiring: RDGV: 2-wire, RNGV, RPGV: 3-wire
  • Switching logic: electronic solid-state, normally open
  • Contact type: RDGV: solid-state, RNGV: solid-state NPN, RPGV: solid-state PNP
  • Operating voltage range: RDGV: 10~28V DC, RNGV, RPGV: 4.5~28V DC
  • Maximum switching current: RDGV: 4~20mA max. RNGV, RPGV: 50mA max.
  • Contact capacity: RDGV: 0.6W max. RNGV, RPGV: 1.5W max. (※1)
  • Current consumption: RNGV, RPGV: 10mA @24V DC max
  • Internal voltage drop: RDGV: 3.5V max. RNGV, RPGV: 0.5V @ 50mA max.
Product form

Sensor,Solid State PNP,Wiring Type:3-Wire Type,Lead Wire Type:Vertical Lead Wire Outlet,Cable Length:M8 3Pin Connector TypeFeatures Wiring: RDGV: 2-wire, RNGV, RPGV: 3-wire... Read more

SKU: RPGV-QD

$17.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Sensor,Solid State PNP,Wiring Type:3-Wire Type,Lead Wire Type:Vertical Lead Wire Outlet,Cable Length:M8 3Pin Connector Type

    Features

    • Wiring: RDGV: 2-wire, RNGV, RPGV: 3-wire
    • Switching logic: electronic solid-state, normally open
    • Contact type: RDGV: solid-state, RNGV: solid-state NPN, RPGV: solid-state PNP
    • Operating voltage range: RDGV: 10~28V DC, RNGV, RPGV: 4.5~28V DC
    • Maximum switching current: RDGV: 4~20mA max. RNGV, RPGV: 50mA max.
    • Contact capacity: RDGV: 0.6W max. RNGV, RPGV: 1.5W max. (※1)
    • Current consumption: RNGV, RPGV: 10mA @24V DC max
    • Internal voltage drop: RDGV: 3.5V max. RNGV, RPGV: 0.5V @ 50mA max.
