Description

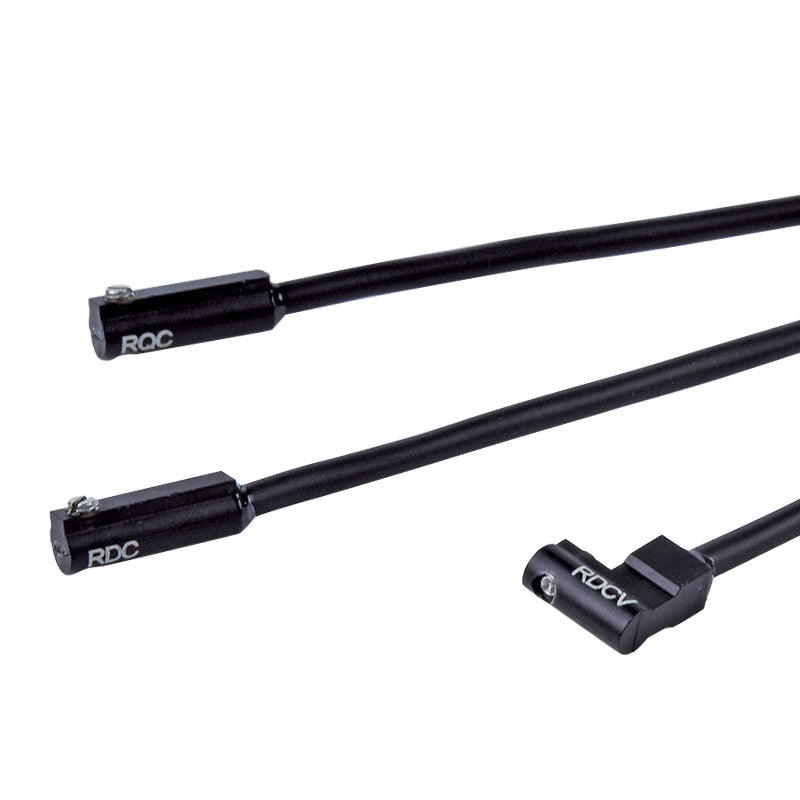

Cylinder Magnetic Sensor (2-Wire),Wiring Type:2-Wire,Switching Logic:Normally Open,Contact Type:Without Contact,Lead Wire Type:Horizontal Cable Outlet,End Type:M8 3-Pin QD Connector Type,Maximum Switching Current:50mA,Contact Capacity:1.5W,Internal Voltage Drop:4.0V@50mA,Leakage Current:0.1mA,Operating Voltage Range:5~30V DC,Magnetic Field Strength:40-1000 Gauss,Indicator Light Colour:Red LED,Cable:ø2.6/27AWG/Black/PVC,Maximum Operating Frequency:1000Hz,Operating Temperature Range:-10 to +70°C (Non-Freezing),Shock Resistance:50G,Vibration Resistance:9G,Enclosure Protection Rating:IP67,Weight:17g (2m Cable)
Features
- Wiring: 2-wire, 3-wire
- Switching logic: normally open
- Contact type: solid-state, solid-state NPN, solid-state PNP
- Operating voltage range: 5~30V DC
- Maximum switching current: 50~80mA max.
- Contact capacity: 1.5~2.4W max. (*1)
- Current consumption: 2mA @24V DC max. (*5)
- Internal voltage drop: 4.0V@50mA max, 1.2V@80mA max. (*5)
- Sensing magnetic field strength: 40~1000 gauss (*5,6)
