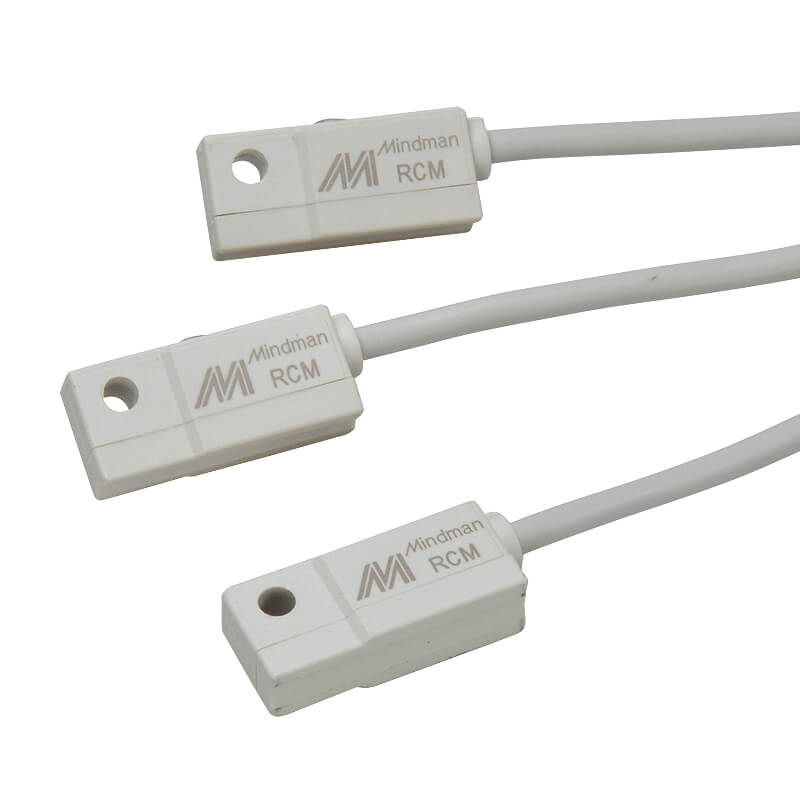

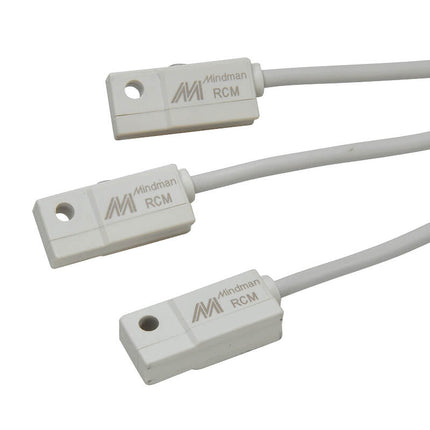

Mindman RCM Series: Sensor (Solid State NPN) - RNM-1M

Description

Sensor,Solid State NPN,Wiring Type:3-Wire Type,Cable Length:L=1000mm

Features

  • Wiring: 2-wire, 3-wire
  • Switching logic: SPST normally open; electronic solid-state, normally open
  • Contact type: contact, solid-state, solid-state NPN, solid-state PNP
  • Operating voltage range: 5~240V DC/AC (5~120V DC/AC), 10~30V DC, 5~28V DC, 5~30V DC
  • Maximum switching current: 100mA, 50mA, 200mA (max.)
  • Contact capacity: 10W, 1.5W, 6W (max.) (*1)
  • Current consumption: 10mA@24V DC, 6mA@24V DC (max.)
  • Internal voltage drop: 3.5V, 3.7V, 1.5V, 0.5V (max.)
Product form

Sensor,Solid State NPN,Wiring Type:3-Wire Type,Cable Length:L=1000mmFeatures Wiring: 2-wire, 3-wire Switching logic: SPST normally open; electronic solid-state, normally open Contact type:... Read more

SKU: RNM-1M

$13.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Sensor,Solid State NPN,Wiring Type:3-Wire Type,Cable Length:L=1000mm

    Features

    • Wiring: 2-wire, 3-wire
    • Switching logic: SPST normally open; electronic solid-state, normally open
    • Contact type: contact, solid-state, solid-state NPN, solid-state PNP
    • Operating voltage range: 5~240V DC/AC (5~120V DC/AC), 10~30V DC, 5~28V DC, 5~30V DC
    • Maximum switching current: 100mA, 50mA, 200mA (max.)
    • Contact capacity: 10W, 1.5W, 6W (max.) (*1)
    • Current consumption: 10mA@24V DC, 6mA@24V DC (max.)
    • Internal voltage drop: 3.5V, 3.7V, 1.5V, 0.5V (max.)
