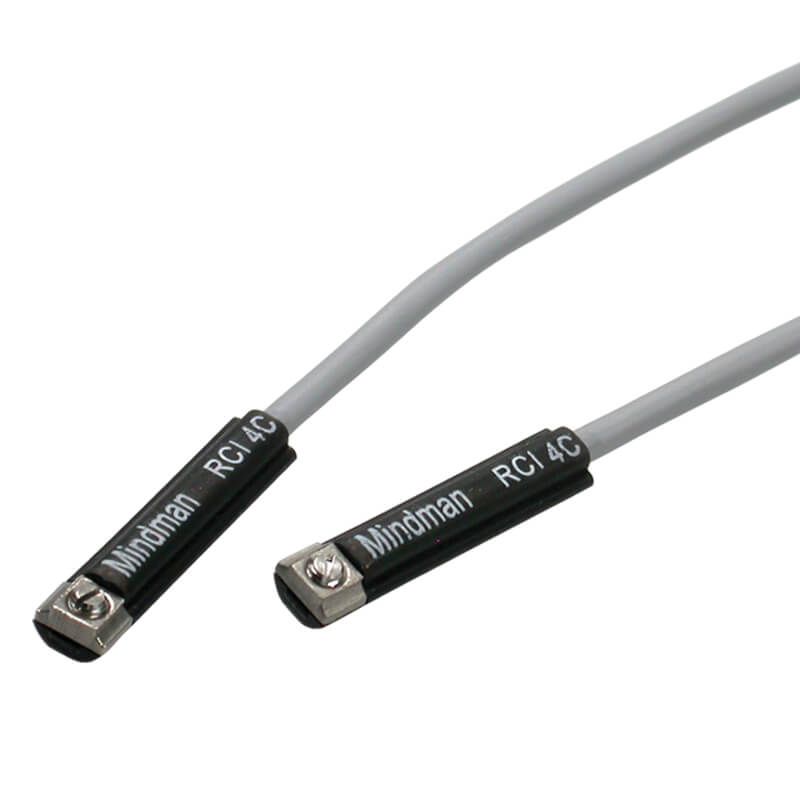

Mindman RCI Series: Sensor (Reed Switch NPN) - RCI-N-3M

Description

Sensor,Reed Type NPN,Wiring Type:3-Wire Type,Cable Length:L=3000mm

Features

  • Wiring type: RCI: 2-wire
  • RCI-N, RCI-P, RNI, RPI: 3-wire
  • Switching logic: RCI, RCI-N, RCI-P: contact type; RNI: solid state NPN; RPI: solid state PNP
  • Contact type: normally open
  • Operating voltage range: RCI (RCI1): 5~240V (5~120V) DC/AC; RCI-N, RCI-P, RNI, RPI: 10~30V DC
  • Maximum switching current: RCI: 100mA max.; RCI-N, RCI-P: 500mA max.; RNI, RPI: 200mA Max.
  • Contact capacity: RCI, RCI-N, RCI-P: 10W max.; RNI, RPI: 6W max. (※1)
  • Current consumption: RCI-N, RCI-P: 5 mA@24V DC max.; RNI, RPI: 20 mA@24V DC max.
  • Internal voltage drop: RCI: 3.0V max.; RCI-N, RCI-P: 0.1V@100mA max.; RNI, RPI: 1.5V max.
Product form

Sensor,Reed Type NPN,Wiring Type:3-Wire Type,Cable Length:L=3000mmFeatures Wiring type: RCI: 2-wire RCI-N, RCI-P, RNI, RPI: 3-wire Switching logic: RCI, RCI-N, RCI-P:... Read more

SKU: RCI-N-3M

$16.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Sensor,Reed Type NPN,Wiring Type:3-Wire Type,Cable Length:L=3000mm

    Features

    • Wiring type: RCI: 2-wire
    • RCI-N, RCI-P, RNI, RPI: 3-wire
    • Switching logic: RCI, RCI-N, RCI-P: contact type; RNI: solid state NPN; RPI: solid state PNP
    • Contact type: normally open
    • Operating voltage range: RCI (RCI1): 5~240V (5~120V) DC/AC; RCI-N, RCI-P, RNI, RPI: 10~30V DC
    • Maximum switching current: RCI: 100mA max.; RCI-N, RCI-P: 500mA max.; RNI, RPI: 200mA Max.
    • Contact capacity: RCI, RCI-N, RCI-P: 10W max.; RNI, RPI: 6W max. (※1)
    • Current consumption: RCI-N, RCI-P: 5 mA@24V DC max.; RNI, RPI: 20 mA@24V DC max.
    • Internal voltage drop: RCI: 3.0V max.; RCI-N, RCI-P: 0.1V@100mA max.; RNI, RPI: 1.5V max.
