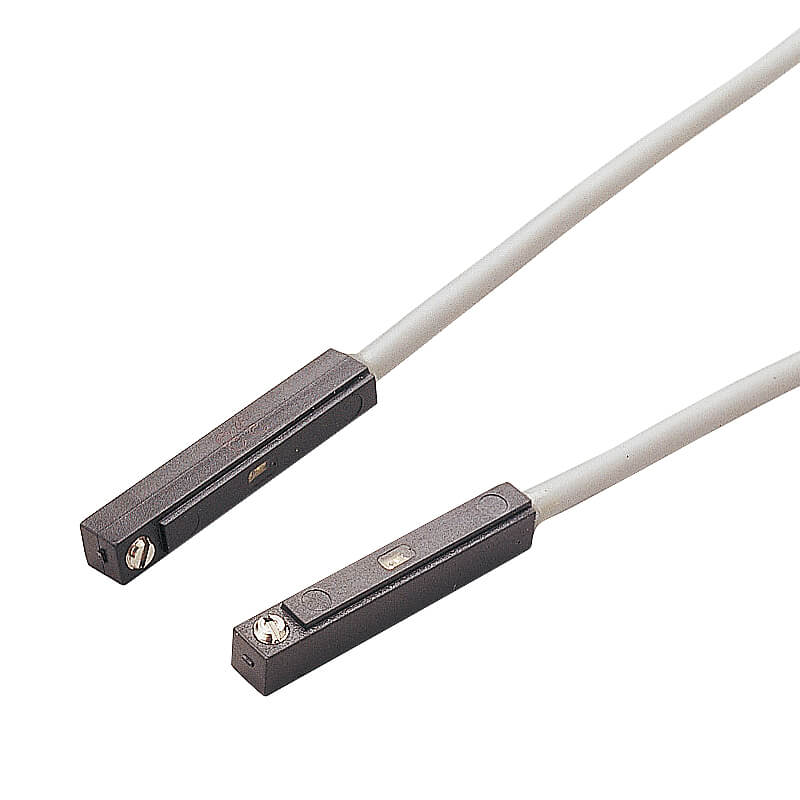

Mindman RCD Series: Sensor (With Contact) - RCD-QD

Description

Sensor,Contact Type,Wiring Type:2-Wire,Cable Length:M8 3Pin Connector Type

Features

  • Wiring type RCD, RDD: 2-wire; RND, RNDE, RPD, RPDE: 3-wire
  • Switching logic RCD: SPST normally open; RDD, RND, RNDE, RPD, RPDE: electronic contactless, normally open
  • Contact type RCD: with contact; RDD: contactless; RND, RNDE: contactless NPN; RPD, RPDE: contactless PNP
  • Operating voltage range RCD: 5~120V DC/AC; RDD, RND, RNDE, RPD, RPDE: 5~30V DC
  • Maximum switching current RCD: 100mA max. RDD: 50mA max. RND, RNDE, RPD, RPDE: 200mA max.
  • Contact capacity RCD: 10W max. RDD: 1.5W max. RND, RNDE, RPD, RPDE: 6W max. (※1)
  • Current consumption RND, RPD: 8 mA@24V DC max. RNDE, RPDE: 6 mA@24V DC max.
  • Internal voltage drop RCD: 3.5V max. RDD: 3.7V max. RND, RPD: 1V@200mA max. RNDE, RPDE: 0.5V@200mA max.
Product form

Sensor,Contact Type,Wiring Type:2-Wire,Cable Length:M8 3Pin Connector TypeFeatures Wiring type RCD, RDD: 2-wire; RND, RNDE, RPD, RPDE: 3-wire Switching logic RCD:... Read more

SKU: RCD-QD

$17.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Sensor,Contact Type,Wiring Type:2-Wire,Cable Length:M8 3Pin Connector Type

    Features

    • Wiring type RCD, RDD: 2-wire; RND, RNDE, RPD, RPDE: 3-wire
    • Switching logic RCD: SPST normally open; RDD, RND, RNDE, RPD, RPDE: electronic contactless, normally open
    • Contact type RCD: with contact; RDD: contactless; RND, RNDE: contactless NPN; RPD, RPDE: contactless PNP
    • Operating voltage range RCD: 5~120V DC/AC; RDD, RND, RNDE, RPD, RPDE: 5~30V DC
    • Maximum switching current RCD: 100mA max. RDD: 50mA max. RND, RNDE, RPD, RPDE: 200mA max.
    • Contact capacity RCD: 10W max. RDD: 1.5W max. RND, RNDE, RPD, RPDE: 6W max. (※1)
    • Current consumption RND, RPD: 8 mA@24V DC max. RNDE, RPDE: 6 mA@24V DC max.
    • Internal voltage drop RCD: 3.5V max. RDD: 3.7V max. RND, RPD: 1V@200mA max. RNDE, RPDE: 0.5V@200mA max.
