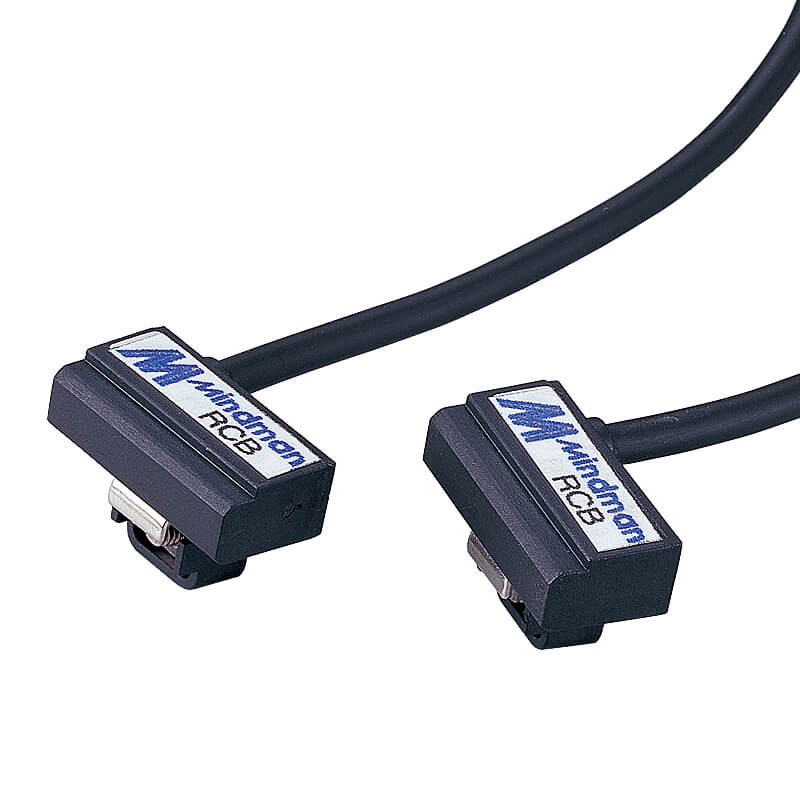

Mindman RCB Series: Sensor (With Contact) - RCB-EQD

Description

Sensor,Contact Type,Wiring Type:2-Wire,Cable Length:M8 3-Pin Connector (European Wiring)

Features

  • Wiring type RCB, RDB: 2-wire; RNB, RNBE, RPB, RPBE: 3-wire
  • Switching logic RCB: SPST normally open; RDB, RNB, RNBE, RPB, RPBE: electronic contactless, normally open
  • Contact type RCB: with contact; RDB: contactless; RNB, RNBE: contactless NPN; RPB, RPBE: contactless PNP
  • Operating voltage range RCB: 5~240V DC/AC; RDB, RNB, RNBE, RPB, RPBE: 5~30V DC
  • Maximum switching current RCB: 100mA max. RDB: 50mA max. RNB, RNBE, RPB, RPBE: 200mA max.
  • Contact capacity RCB: 10W max. RDB: 1.5W max. RNB, RNBE, RPB, RPBE: 6W max. (※1)
  • Current consumption RNB: 22mA@24V DC max. RPB: 20mA@24V DC max. RNBE, RPBE: 6mA@24V DC max.
  • Internal voltage drop RCB: 3.5V max. RDB: 3.7V max. RNB, RNBE, RPB, RPBE: 0.5V max.
Product form

Sensor,Contact Type,Wiring Type:2-Wire,Cable Length:M8 3-Pin Connector (European Wiring)Features Wiring type RCB, RDB: 2-wire; RNB, RNBE, RPB, RPBE: 3-wire Switching logic... Read more

SKU: RCB-EQD

$16.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Sensor,Contact Type,Wiring Type:2-Wire,Cable Length:M8 3-Pin Connector (European Wiring)

    Features

    • Wiring type RCB, RDB: 2-wire; RNB, RNBE, RPB, RPBE: 3-wire
    • Switching logic RCB: SPST normally open; RDB, RNB, RNBE, RPB, RPBE: electronic contactless, normally open
    • Contact type RCB: with contact; RDB: contactless; RNB, RNBE: contactless NPN; RPB, RPBE: contactless PNP
    • Operating voltage range RCB: 5~240V DC/AC; RDB, RNB, RNBE, RPB, RPBE: 5~30V DC
    • Maximum switching current RCB: 100mA max. RDB: 50mA max. RNB, RNBE, RPB, RPBE: 200mA max.
    • Contact capacity RCB: 10W max. RDB: 1.5W max. RNB, RNBE, RPB, RPBE: 6W max. (※1)
    • Current consumption RNB: 22mA@24V DC max. RPB: 20mA@24V DC max. RNBE, RPBE: 6mA@24V DC max.
    • Internal voltage drop RCB: 3.5V max. RDB: 3.7V max. RNB, RNBE, RPB, RPBE: 0.5V max.
