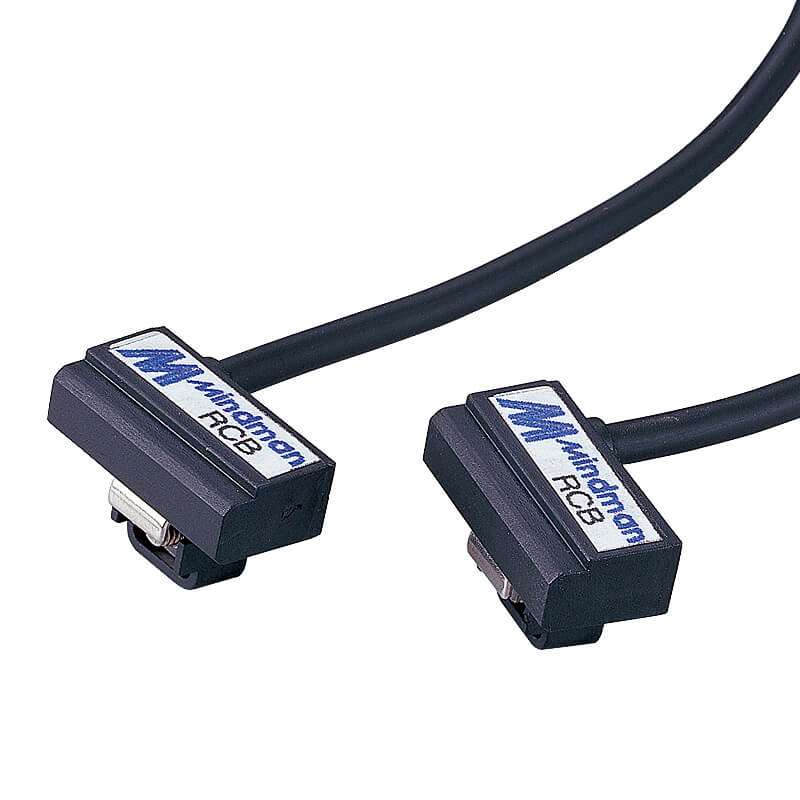

Mindman RCB Series: Sensor (Solid State NPN) - RNB-2M

Description

Sensor,Solid State NPN,Wiring Type:3-Wire Type,Cable Length:L=2000mm

Features

  • Wiring type RCB, RDB: 2-wire; RNB, RNBE, RPB, RPBE: 3-wire
  • Switching logic RCB: SPST normally open; RDB, RNB, RNBE, RPB, RPBE: electronic contactless, normally open
  • Contact type RCB: with contact; RDB: contactless; RNB, RNBE: contactless NPN; RPB, RPBE: contactless PNP
  • Operating voltage range RCB: 5~240V DC/AC; RDB, RNB, RNBE, RPB, RPBE: 5~30V DC
  • Maximum switching current RCB: 100mA max. RDB: 50mA max. RNB, RNBE, RPB, RPBE: 200mA max.
  • Contact capacity RCB: 10W max. RDB: 1.5W max. RNB, RNBE, RPB, RPBE: 6W max. (※1)
  • Current consumption RNB: 22mA@24V DC max. RPB: 20mA@24V DC max. RNBE, RPBE: 6mA@24V DC max.
  • Internal voltage drop RCB: 3.5V max. RDB: 3.7V max. RNB, RNBE, RPB, RPBE: 0.5V max.
Product form

Sensor,Solid State NPN,Wiring Type:3-Wire Type,Cable Length:L=2000mmFeatures Wiring type RCB, RDB: 2-wire; RNB, RNBE, RPB, RPBE: 3-wire Switching logic RCB: SPST... Read more

SKU: RNB-2M

$14.50 Excl. VAT

    • Image may not be representative of actual product.
