Mindman RCA Series: Sensor (Solid State NPN) - RNAE-QD

Description

Sensor,Solid State NPN,Wiring Type:3-Wire Type,Switch Logic:Electronic Solid-State Normally Open,Cable Length:M8 3Pin Connector Type

Features

  • Model: RCA, RDA, RNA, RNAE, RPA, RPAE
  • Wiring type: RCA, RDA: 2-wire; RNA, RNAE, RPA, RPAE: 3-wire
  • Switching logic: RCA: SPST normally open; RDA, RNA, RNAE, RPA, RPAE: electronic solid state, normally open
  • Contact type: RCA: contact type; RDA: solid state; RNA, RNAE: solid state NPN; RPA, RPAE: solid state PNP
  • Operating voltage range: RCA: 5~240V DC/AC; RDA: 5~30V DC; RNA, RNAE, RPA, RPAE: 5~30V DC
  • Maximum switching current: RCA: 100mA max.; RDA: 50mA max.; RNA, RNAE, RPA, RPAE: 200mA max.
  • Contact capacity: RCA: 10W max.; RDA: 1.5W max.; RNA, RNAE, RPA, RPAE: 6W max. (※1)
  • Current consumption: RNA, RPA: 15mA@24V DC max.; RNAE, RPAE: 6mA@24V DC max.
  • Internal voltage drop: RCA: 3.5V max.; RDA: 3.7V max.; RNA, RPA: 1.5V max.; RNAE, RPAE: 0.5V max.
Product form

Sensor,Solid State NPN,Wiring Type:3-Wire Type,Switch Logic:Electronic Solid-State Normally Open,Cable Length:M8 3Pin Connector TypeFeatures Model: RCA, RDA, RNA, RNAE, RPA, RPAE... Read more

SKU: RNAE-QD

$17.00 Excl. VAT

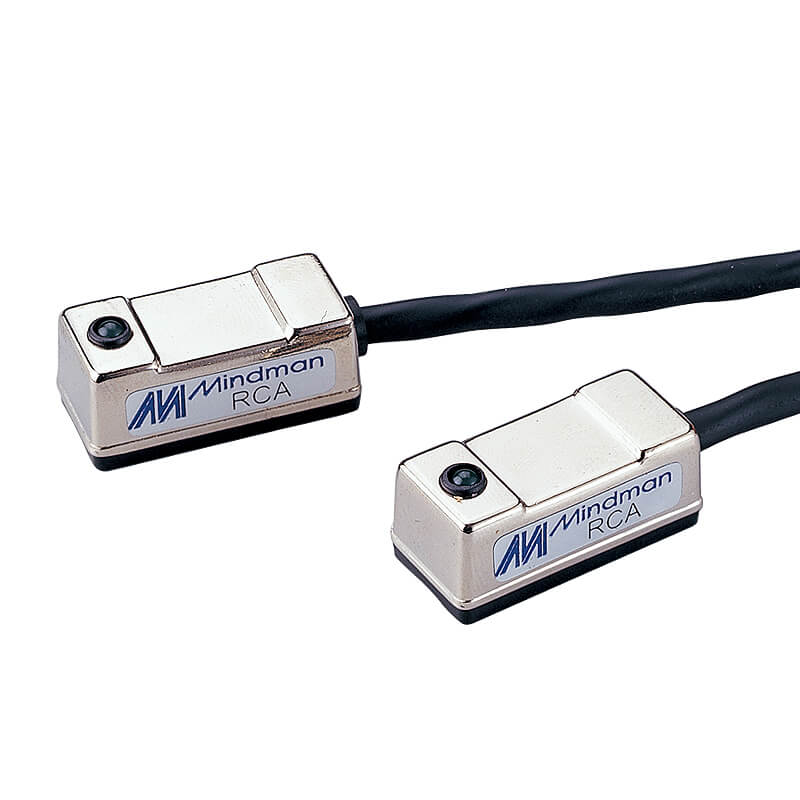

    • Image may not be representative of actual product.

    Description

    Sensor,Solid State NPN,Wiring Type:3-Wire Type,Switch Logic:Electronic Solid-State Normally Open,Cable Length:M8 3Pin Connector Type

    Features

    • Model: RCA, RDA, RNA, RNAE, RPA, RPAE
    • Wiring type: RCA, RDA: 2-wire; RNA, RNAE, RPA, RPAE: 3-wire
    • Switching logic: RCA: SPST normally open; RDA, RNA, RNAE, RPA, RPAE: electronic solid state, normally open
    • Contact type: RCA: contact type; RDA: solid state; RNA, RNAE: solid state NPN; RPA, RPAE: solid state PNP
    • Operating voltage range: RCA: 5~240V DC/AC; RDA: 5~30V DC; RNA, RNAE, RPA, RPAE: 5~30V DC
    • Maximum switching current: RCA: 100mA max.; RDA: 50mA max.; RNA, RNAE, RPA, RPAE: 200mA max.
    • Contact capacity: RCA: 10W max.; RDA: 1.5W max.; RNA, RNAE, RPA, RPAE: 6W max. (※1)
    • Current consumption: RNA, RPA: 15mA@24V DC max.; RNAE, RPAE: 6mA@24V DC max.
    • Internal voltage drop: RCA: 3.5V max.; RDA: 3.7V max.; RNA, RPA: 1.5V max.; RNAE, RPAE: 0.5V max.
