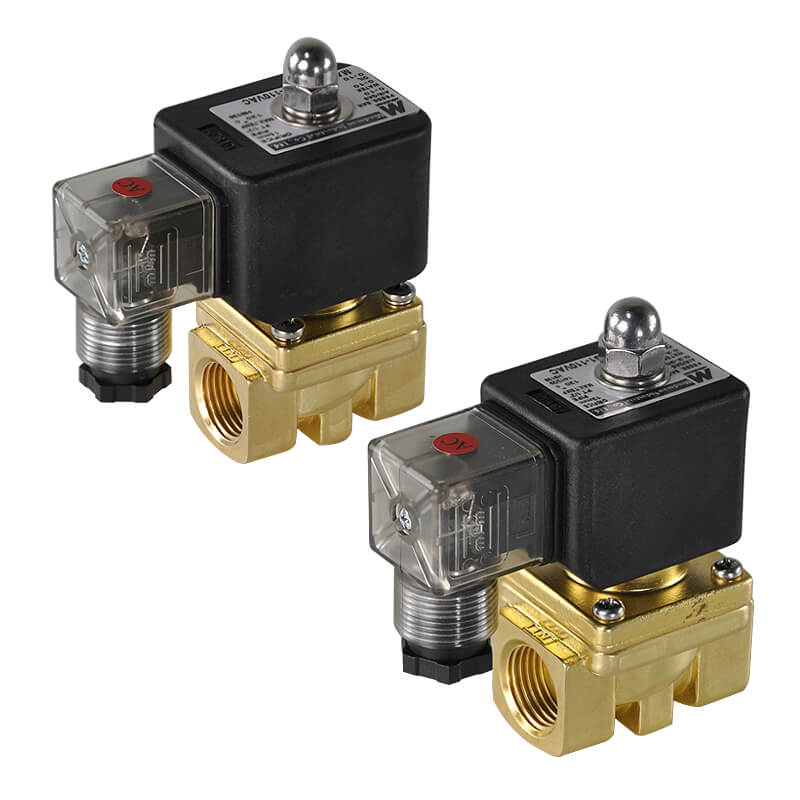

Mindman MXCD Series: 2-Port 2-Position Pilot-Operated Diaphragm Solenoid Valve (Normally Closed) - MXCD-8-N-G-A-AC110-G

Description

2-Port 2-Position Pilot-Operated Diaphragm Solenoid Valve (Normally Closed),Valve Body Material:Brass,Port Size:1/4",Seal Material:NBR,Solenoid:European Square DIN AC/DC Common,Operating Fluid:Air,Voltage:AC110V(50/60)Hz,Port Thread:G Thread

Features

  • The piping can be installed horizontally or vertically without restriction.
  • The diaphragm uses an assembled design that resists rupture; changing the diaphragm and valve body materials allows the valve to be used with a wider range of fluids.
  • Simple design, easy maintenance, low failure rate, compact size and low power consumption.
  • Rated voltage range: ±10%.
  • Fluid temperature range: -10~+80°C (light oil 120°C).
Product form

2-Port 2-Position Pilot-Operated Diaphragm Solenoid Valve (Normally Closed),Valve Body Material:Brass,Port Size:1/4",Seal Material:NBR,Solenoid:European Square DIN AC/DC Common,Operating Fluid:Air,Voltage:AC110V(50/60)Hz,Port Thread:G ThreadFeatures The... Read more

SKU: MXCD-8-N-G-A-AC110-G

$34.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    2-Port 2-Position Pilot-Operated Diaphragm Solenoid Valve (Normally Closed),Valve Body Material:Brass,Port Size:1/4",Seal Material:NBR,Solenoid:European Square DIN AC/DC Common,Operating Fluid:Air,Voltage:AC110V(50/60)Hz,Port Thread:G Thread

    Features

    • The piping can be installed horizontally or vertically without restriction.
    • The diaphragm uses an assembled design that resists rupture; changing the diaphragm and valve body materials allows the valve to be used with a wider range of fluids.
    • Simple design, easy maintenance, low failure rate, compact size and low power consumption.
    • Rated voltage range: ±10%.
    • Fluid temperature range: -10~+80°C (light oil 120°C).
