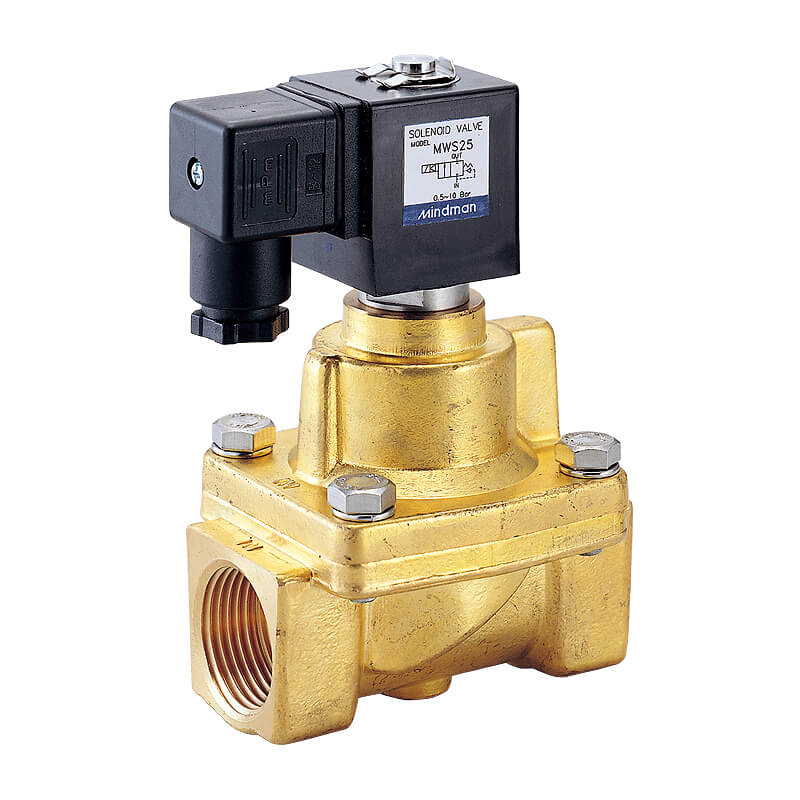

Mindman MWA_MWH_MWS Series: 2-Port 2-Position Pilot-Operated Piston Solenoid Valve (Normally Closed / For Steam & High-Temperature Fluids / Forged Brass Body) - MWS-15-T-4-D-F-AC110

Description

2-Port 2-Position Pilot-Operated Piston Solenoid Valve (Normally Closed / For Steam & High-Temperature Fluids / Forged Brass Body),Port Size:1/2,Seal Material:Teflon,Solenoid:Standard,Socket:With LED,Piping Type:Flange Plate (JIS10K Iron Flange),Voltage:AC110V(50/60)Hz

Features

  • IP65 waterproof coil.
  • Continuous duty, 100% ED.
  • Explosion-proof rating: EExm II T4 or EEx ia II C T6, PTB certified.
  • Ambient temperature: -15~+50°C (non-freezing).
  • Voltage tolerance: ±8%.
  • Can be mounted at any angle without affecting operation (coil uppermost is preferable).
  • Opening time: 100~300 ms, closing time: 300~2000 ms
Product form

2-Port 2-Position Pilot-Operated Piston Solenoid Valve (Normally Closed / For Steam & High-Temperature Fluids / Forged Brass Body),Port Size:1/2,Seal Material:Teflon,Solenoid:Standard,Socket:With... Read more

SKU: MWS-15-T-4-D-F-AC110

$64.80 Excl. VAT

    • Image may not be representative of actual product.

    Description

    2-Port 2-Position Pilot-Operated Piston Solenoid Valve (Normally Closed / For Steam & High-Temperature Fluids / Forged Brass Body),Port Size:1/2,Seal Material:Teflon,Solenoid:Standard,Socket:With LED,Piping Type:Flange Plate (JIS10K Iron Flange),Voltage:AC110V(50/60)Hz

    Features

    • IP65 waterproof coil.
    • Continuous duty, 100% ED.
    • Explosion-proof rating: EExm II T4 or EEx ia II C T6, PTB certified.
    • Ambient temperature: -15~+50°C (non-freezing).
    • Voltage tolerance: ±8%.
    • Can be mounted at any angle without affecting operation (coil uppermost is preferable).
    • Opening time: 100~300 ms, closing time: 300~2000 ms
