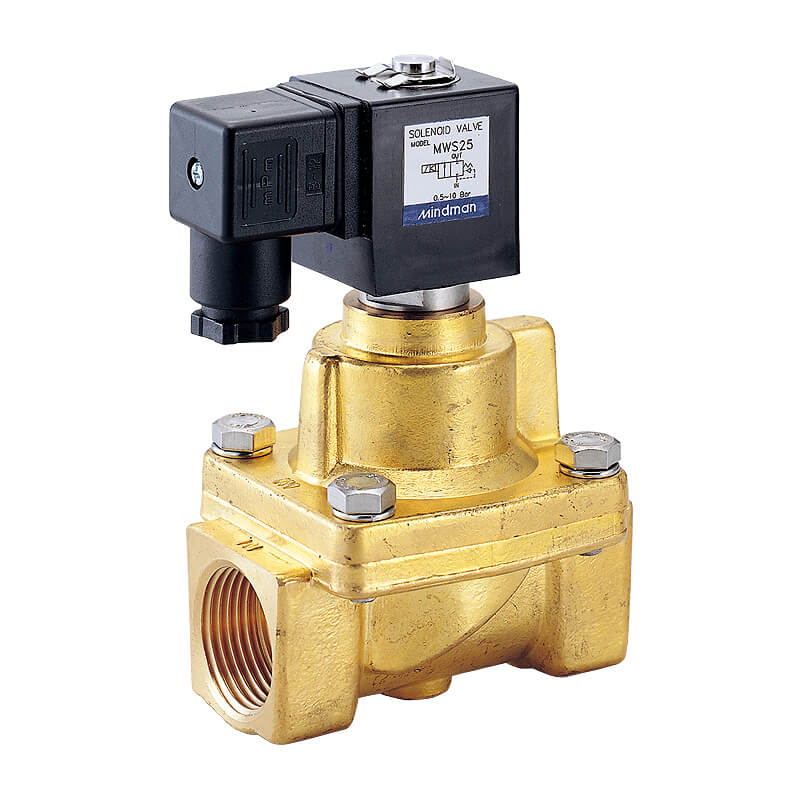

Mindman MWA_MWH_MWS Series: 2-Port 2-Position Pilot-Operated Piston Solenoid Valve (Normally Closed / For Air / Water / Gas / Forged Brass Valve Body) - MWA-32-N-4-AC220

Description

2-Port 2-Position Pilot-Operated Piston Solenoid Valve (Normally Closed / For Air / Water / Gas / Forged Brass Valve Body),Port Size:1 1/4,Seal Material:NBR,Solenoid:Standard,Socket:Connector Type,Piping Type:Threaded Type,Voltage:AC220V(50/60)Hz

Features

  • IP65 waterproof coil.
  • Continuous duty, 100% ED.
  • Explosion-proof rating: EExm II T4 or EEx ia II C T6, PTB certified.
  • Ambient temperature: -15~+50°C (non-freezing).
  • Voltage tolerance: ±8%.
  • Can be mounted at any angle without affecting operation (coil uppermost is preferable).
  • Opening time: 100~300 ms, closing time: 300~2000 ms
Product form

2-Port 2-Position Pilot-Operated Piston Solenoid Valve (Normally Closed / For Air / Water / Gas / Forged Brass Valve Body),Port... Read more

SKU: MWA-32-N-4-AC220

$101.20 Excl. VAT

    • Image may not be representative of actual product.

    Description

    2-Port 2-Position Pilot-Operated Piston Solenoid Valve (Normally Closed / For Air / Water / Gas / Forged Brass Valve Body),Port Size:1 1/4,Seal Material:NBR,Solenoid:Standard,Socket:Connector Type,Piping Type:Threaded Type,Voltage:AC220V(50/60)Hz

    Features

    • IP65 waterproof coil.
    • Continuous duty, 100% ED.
    • Explosion-proof rating: EExm II T4 or EEx ia II C T6, PTB certified.
    • Ambient temperature: -15~+50°C (non-freezing).
    • Voltage tolerance: ±8%.
    • Can be mounted at any angle without affecting operation (coil uppermost is preferable).
    • Opening time: 100~300 ms, closing time: 300~2000 ms
