Mindman MVSP-156 Series: Solenoid Valve - MVSP-156C8-4E2C-DC24-L-NPT

Description

Solenoid Valve,Body Width:156,Piping Type:Direct Piping with Quick Fitting (Tube ø8mm),Port Configuration:4-Way (5-Port),Solenoid:Double Solenoid,Centre Position / Dual 3-Port:Closed Centre,Response Time:Standard,Voltage:DC24V,Lead Wire Type:DIN Connector with LED,Lead Wire Length:500mm,Port Thread:NPT Thread

Features

  • DISK ring and U-packing (HNBR) design: excellent wear resistance, superior sealing and a wide temperature range of -35~+150°C (service life up to 50 million cycles).
  • Bridge rectifier design: converts AC to DC, so there is no buzzing noise when energised on AC.
  • Low power consumption: 0.95W (DC), roughly 70% less power than the 3W of other brands.
  • Low current consumption: extends the service life of upstream drivers (PLC, relay, etc.).
  • Low-power-output PLCs can drive the solenoid valve directly.
Product form

Solenoid Valve,Body Width:156,Piping Type:Direct Piping with Quick Fitting (Tube ø8mm),Port Configuration:4-Way (5-Port),Solenoid:Double Solenoid,Centre Position / Dual 3-Port:Closed Centre,Response Time:Standard,Voltage:DC24V,Lead Wire... Read more

SKU: MVSP-156C8-4E2C-DC24-L-NPT

$99.15 Excl. VAT

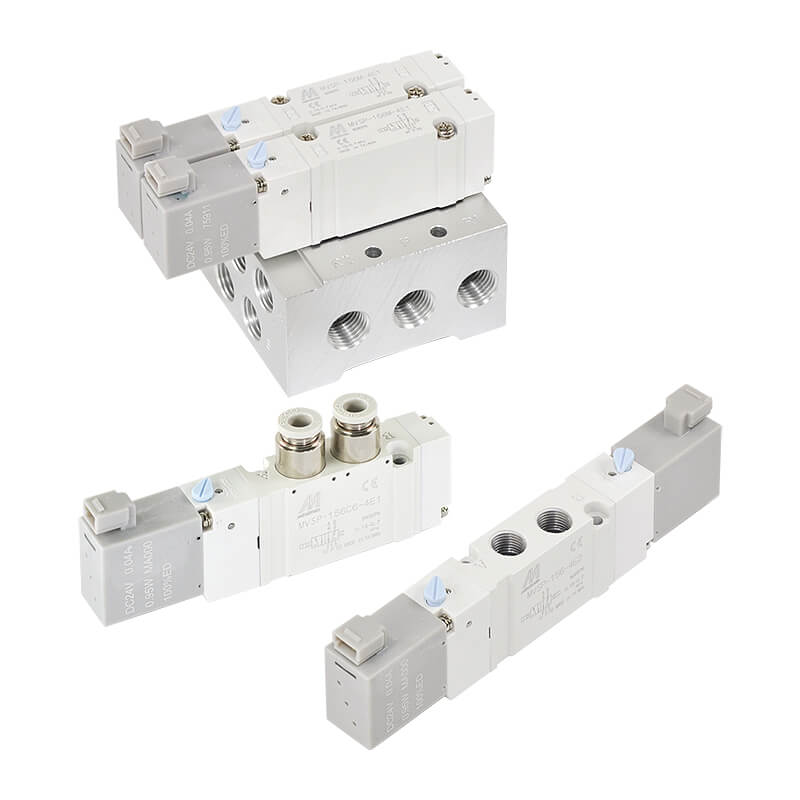

    • Image may not be representative of actual product.

    Description

    Solenoid Valve,Body Width:156,Piping Type:Direct Piping with Quick Fitting (Tube ø8mm),Port Configuration:4-Way (5-Port),Solenoid:Double Solenoid,Centre Position / Dual 3-Port:Closed Centre,Response Time:Standard,Voltage:DC24V,Lead Wire Type:DIN Connector with LED,Lead Wire Length:500mm,Port Thread:NPT Thread

    Features

    • DISK ring and U-packing (HNBR) design: excellent wear resistance, superior sealing and a wide temperature range of -35~+150°C (service life up to 50 million cycles).
    • Bridge rectifier design: converts AC to DC, so there is no buzzing noise when energised on AC.
    • Low power consumption: 0.95W (DC), roughly 70% less power than the 3W of other brands.
    • Low current consumption: extends the service life of upstream drivers (PLC, relay, etc.).
    • Low-power-output PLCs can drive the solenoid valve directly.
