Mindman MVSE-300 Series: 5-Port / 3-Port Solenoid Valve - MVSE-300-4E2R-AC110-NPT

Description

5-Port / 3-Port Solenoid Valve,Body Width:Self-Piping Type,Valve Type:5/3 Double Solenoid Exhaust Centre,Voltage:AC110V(50/60Hz),Connector Type:DIN Connector,Port Thread:NPT Thread

Features

  • Body width 30mm
  • Port size code 10A
  • Valve type 5-port 2-position, 5-port 3-position
  • Body type direct-piping type
  • Port size 3/8
  • Fluid air
  • Operating pressure range 0.2~1.2 MPa, 0.3~1.2 MPa (5/3)
  • Proof pressure 1.5 MPa
  • Flow rate 1851, 1906 l/min
  • Effective cross-sectional area 35, 34.5 mm2 (5/3)
  • Response time 50 ms
Product form

5-Port / 3-Port Solenoid Valve,Body Width:Self-Piping Type,Valve Type:5/3 Double Solenoid Exhaust Centre,Voltage:AC110V(50/60Hz),Connector Type:DIN Connector,Port Thread:NPT ThreadFeatures Body width 30mm Port... Read more

SKU: MVSE-300-4E2R-AC110-NPT

$170.10 Excl. VAT

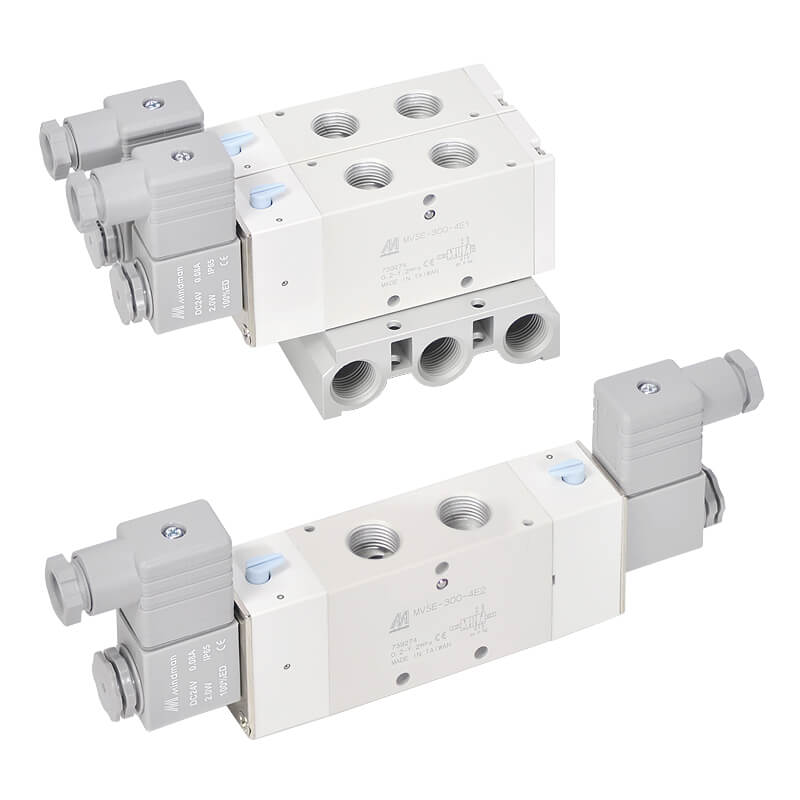

    • Image may not be representative of actual product.

    Description

    5-Port / 3-Port Solenoid Valve,Body Width:Self-Piping Type,Valve Type:5/3 Double Solenoid Exhaust Centre,Voltage:AC110V(50/60Hz),Connector Type:DIN Connector,Port Thread:NPT Thread

    Features

    • Body width 30mm
    • Port size code 10A
    • Valve type 5-port 2-position, 5-port 3-position
    • Body type direct-piping type
    • Port size 3/8
    • Fluid air
    • Operating pressure range 0.2~1.2 MPa, 0.3~1.2 MPa (5/3)
    • Proof pressure 1.5 MPa
    • Flow rate 1851, 1906 l/min
    • Effective cross-sectional area 35, 34.5 mm2 (5/3)
    • Response time 50 ms
