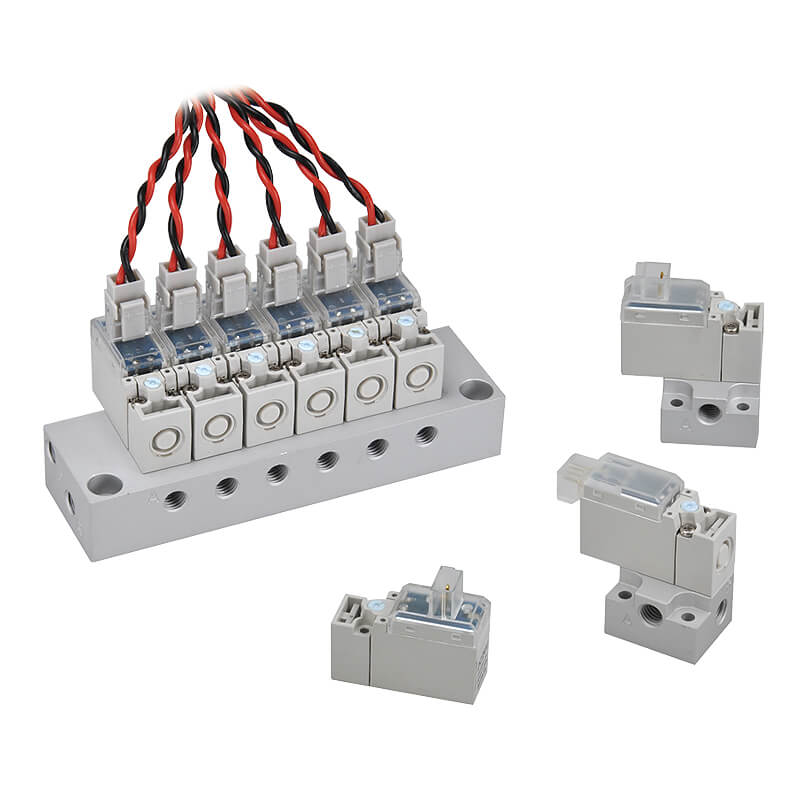

Mindman MVDY-100 Series: Solenoid Valve (Direct Acting) - MVDY-100-3E1-AC110V-L-LJ1-A-M6

Description

Solenoid Valve (Direct Acting),Valve Type:3/2 Direct Acting,Voltage:AC110V(50/60Hz),Power Consumption:0.55W,Lead Wire Type:Horizontal Connector Type (JPC Lead Wire),Lead Wire Length:1000mm,Pressure Type:Low Flow High Pressure Type,Assembly:6 Stations

Features

  • Body width: 10 mm
  • Valve type: 3-port 2-position
  • Body style: manifold type
  • Fluid: air
  • Operating pressure range: high flow 0~0.7 MPa; low flow 0~0.9 MPa
  • Vacuum applications: P port 0~0.6 MPa; R port -90~0 kPa
Product form

Solenoid Valve (Direct Acting),Valve Type:3/2 Direct Acting,Voltage:AC110V(50/60Hz),Power Consumption:0.55W,Lead Wire Type:Horizontal Connector Type (JPC Lead Wire),Lead Wire Length:1000mm,Pressure Type:Low Flow High... Read more

SKU: MVDY-100-3E1-AC110V-L-LJ1-A-M6

$42.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Solenoid Valve (Direct Acting),Valve Type:3/2 Direct Acting,Voltage:AC110V(50/60Hz),Power Consumption:0.55W,Lead Wire Type:Horizontal Connector Type (JPC Lead Wire),Lead Wire Length:1000mm,Pressure Type:Low Flow High Pressure Type,Assembly:6 Stations

    Features

    • Body width: 10 mm
    • Valve type: 3-port 2-position
    • Body style: manifold type
    • Fluid: air
    • Operating pressure range: high flow 0~0.7 MPa; low flow 0~0.9 MPa
    • Vacuum applications: P port 0~0.6 MPa; R port -90~0 kPa
