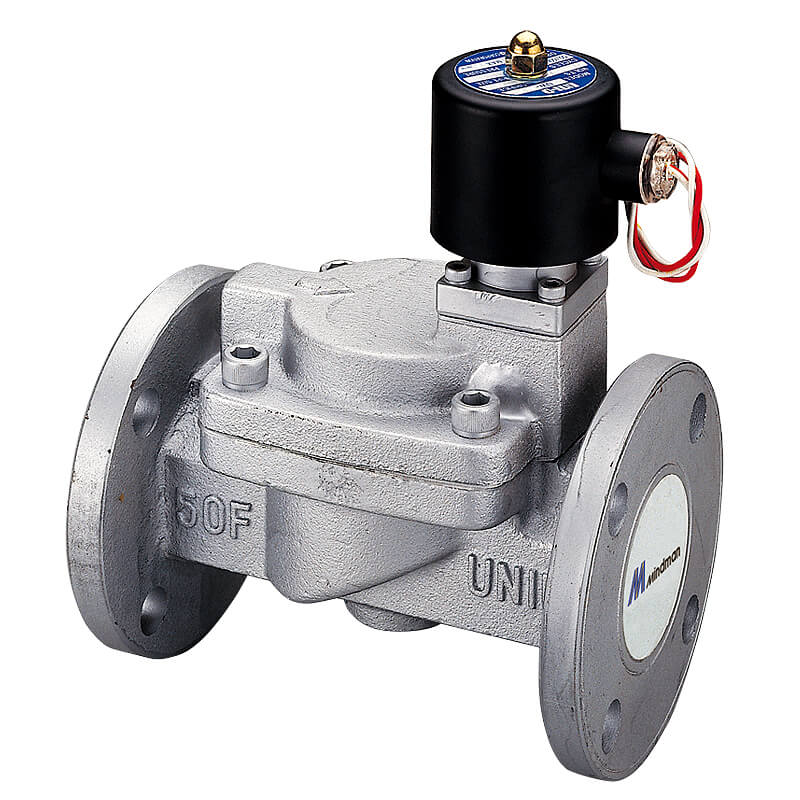

Mindman MUW-F Series: 2-Port 2-Position Diaphragm Solenoid Valve (Normally Closed) - MUW-50F-W-DC24

Description

2-Port 2-Position Diaphragm Solenoid Valve (Normally Closed),Valve Body Material:FC-20 Cast Iron,Piping Type:JIS 10K Flange,Port Size:2",Solenoid Type:Standard Iron Housing Solenoid,Applicable Fluid:Water / Air,Voltage:DC24V

Features

  • A double-acting, diaphragm pilot-operated normally closed / normally open solenoid valve.
  • Where fluid temperatures up to 130°C are required, the normally open version can be ordered with Viton, silicone or EPDM seal seats and diaphragm materials.
  • Pipe connection standard: JIS 10K flange; other standards (such as ANSI 150LB or PN 16) can be manufactured to customer requirements.
  • AC voltage tolerance: ±10%; DC voltage tolerance: ±1%.
Product form

2-Port 2-Position Diaphragm Solenoid Valve (Normally Closed),Valve Body Material:FC-20 Cast Iron,Piping Type:JIS 10K Flange,Port Size:2",Solenoid Type:Standard Iron Housing Solenoid,Applicable Fluid:Water... Read more

SKU: MUW-50F-W-DC24

$299.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    2-Port 2-Position Diaphragm Solenoid Valve (Normally Closed),Valve Body Material:FC-20 Cast Iron,Piping Type:JIS 10K Flange,Port Size:2",Solenoid Type:Standard Iron Housing Solenoid,Applicable Fluid:Water / Air,Voltage:DC24V

    Features

    • A double-acting, diaphragm pilot-operated normally closed / normally open solenoid valve.
    • Where fluid temperatures up to 130°C are required, the normally open version can be ordered with Viton, silicone or EPDM seal seats and diaphragm materials.
    • Pipe connection standard: JIS 10K flange; other standards (such as ANSI 150LB or PN 16) can be manufactured to customer requirements.
    • AC voltage tolerance: ±10%; DC voltage tolerance: ±1%.
