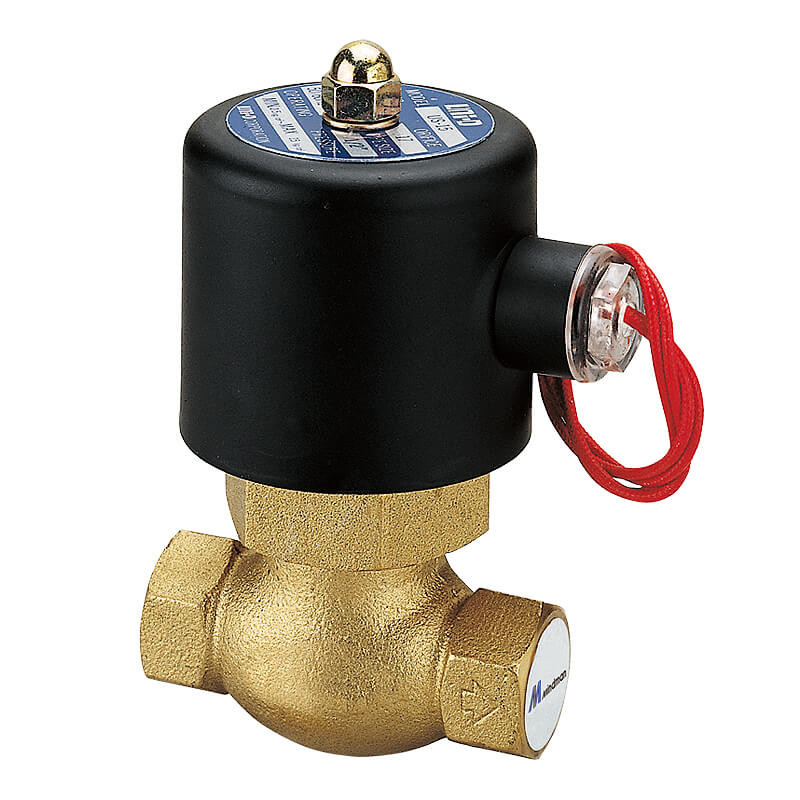

Mindman MUS Series: 2-Port 2-Position Pilot Piston Solenoid Valve (Normally Closed) - MUS-15-D-HO-AC110-NPT

Description

2-Port 2-Position Pilot Piston Solenoid Valve (Normally Closed),Valve Body Material:Cast Brass,Piping Type:Thread (NPT Thread),Port Size:1/2",Solenoid Type:DIN Connector Solenoid Coil (130°C or Below),Applicable Fluid:Heavy Oil,Voltage:AC110V(50/60)Hz

Features

  • Double-acting piston pilot-operated, normally closed solenoid valve.
  • For fluid temperatures up to 130°C, Viton, silicone or EPDM sealing head materials can be made to order.
  • Pipe connection specification: JIS 10K flange; other specifications (such as ANSI 150LB or PN 16) can be manufactured to customer requirements.
  • AC voltage tolerance: ±10%; DC voltage tolerance: ±1%.
Product form

2-Port 2-Position Pilot Piston Solenoid Valve (Normally Closed),Valve Body Material:Cast Brass,Piping Type:Thread (NPT Thread),Port Size:1/2",Solenoid Type:DIN Connector Solenoid Coil (130°C... Read more

SKU: MUS-15-D-HO-AC110-NPT

$63.80 Excl. VAT

    • Image may not be representative of actual product.

    Description

    2-Port 2-Position Pilot Piston Solenoid Valve (Normally Closed),Valve Body Material:Cast Brass,Piping Type:Thread (NPT Thread),Port Size:1/2",Solenoid Type:DIN Connector Solenoid Coil (130°C or Below),Applicable Fluid:Heavy Oil,Voltage:AC110V(50/60)Hz

    Features

    • Double-acting piston pilot-operated, normally closed solenoid valve.
    • For fluid temperatures up to 130°C, Viton, silicone or EPDM sealing head materials can be made to order.
    • Pipe connection specification: JIS 10K flange; other specifications (such as ANSI 150LB or PN 16) can be manufactured to customer requirements.
    • AC voltage tolerance: ±10%; DC voltage tolerance: ±1%.
