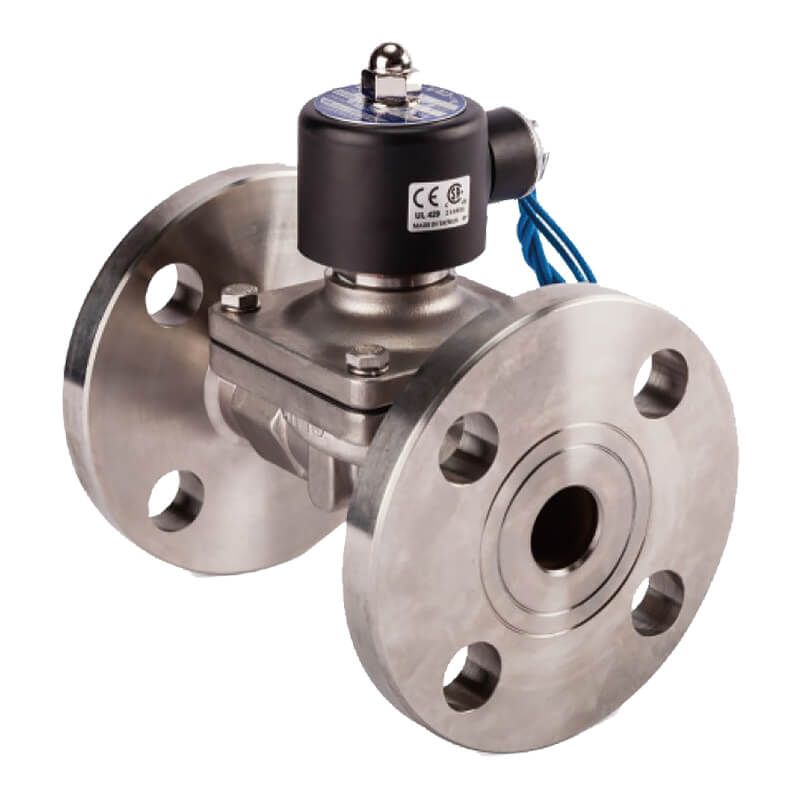

Mindman MSUW-F Series: 2-Port 2-Position Diaphragm Solenoid Valve (Normally Closed) - MSUW-25F-I-W-AC220

Description

2-Port 2-Position Diaphragm Solenoid Valve (Normally Closed),Valve Body Material:Stainless Steel,Piping Type:JIS 10K Flange,Port Size:1",Operating Pressure:Standard,Solenoid Type:Waterproof Solenoid (Below 130°C),Applicable Fluid:Water / Air,Voltage:AC220V(50/60)Hz

Features

  • A direct/pilot-acting linked-diaphragm normally closed solenoid valve.
  • Can be operated directly at low pressure.
  • Where the fluid temperature must reach 130°C, Viton, silicone or EPDM seal plugs and diaphragm materials can be supplied to order.
  • Pipe connection standard: JIS 10K flange; other standards (such as ANSI 150LB or PN 16) can be manufactured to customer requirements.
  • AC voltage tolerance: ±10%; DC voltage tolerance: ±1%.
Product form

2-Port 2-Position Diaphragm Solenoid Valve (Normally Closed),Valve Body Material:Stainless Steel,Piping Type:JIS 10K Flange,Port Size:1",Operating Pressure:Standard,Solenoid Type:Waterproof Solenoid (Below 130°C),Applicable Fluid:Water... Read more

SKU: MSUW-25F-I-W-AC220

$204.80 Excl. VAT

    • Image may not be representative of actual product.

    Description

    2-Port 2-Position Diaphragm Solenoid Valve (Normally Closed),Valve Body Material:Stainless Steel,Piping Type:JIS 10K Flange,Port Size:1",Operating Pressure:Standard,Solenoid Type:Waterproof Solenoid (Below 130°C),Applicable Fluid:Water / Air,Voltage:AC220V(50/60)Hz

    Features

    • A direct/pilot-acting linked-diaphragm normally closed solenoid valve.
    • Can be operated directly at low pressure.
    • Where the fluid temperature must reach 130°C, Viton, silicone or EPDM seal plugs and diaphragm materials can be supplied to order.
    • Pipe connection standard: JIS 10K flange; other standards (such as ANSI 150LB or PN 16) can be manufactured to customer requirements.
    • AC voltage tolerance: ±10%; DC voltage tolerance: ±1%.
