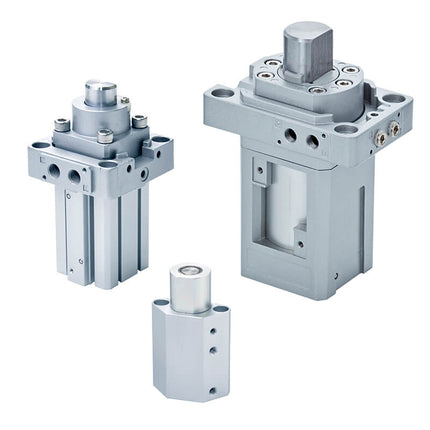

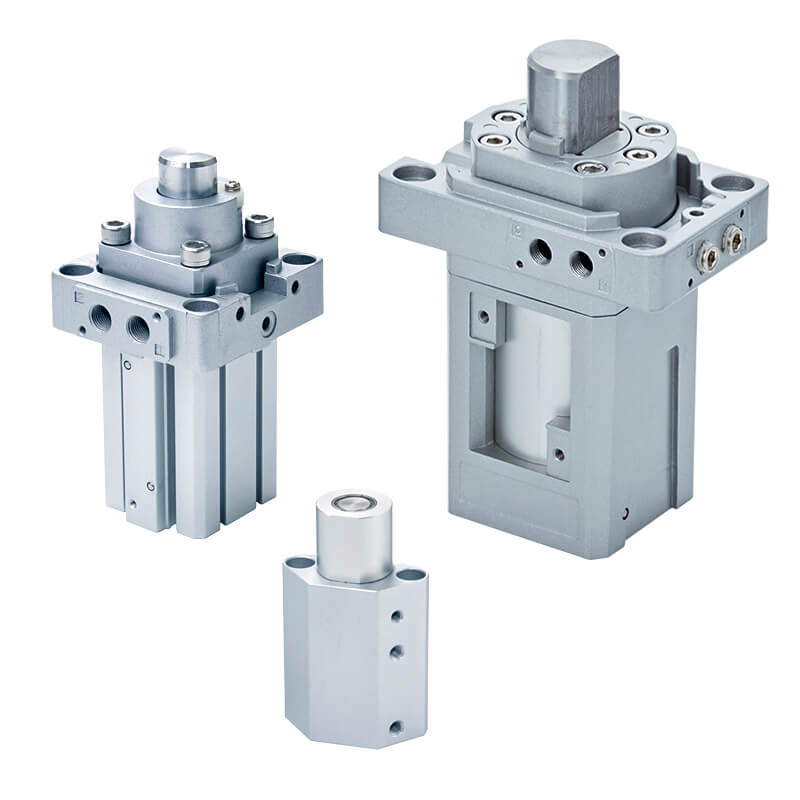

Mindman MSBS Series: Stopper Cylinder (Direct Stop Type) - MSBS-32-20-G

Description

Stopper Cylinder (Direct Stop Type),Cylinder Bore:32mm,Stroke:20mm,Operation Type:Double Acting,Port Thread:G Thread,Magnet:Built-In,Applicable Sensor:RCE / RCE1 / RDEP,Operating Fluid:Air,Operating Pressure Range:0.2~1MPa,Withstand Pressure:1.5MPa,Ambient Temperature:-5~+60°C (Non-Freezing),Lubrication:Non-Lube,Cushion:NBR Bumper Pad

Features

  • Cylinder bore: ø 20, 32, 50 (mm)
  • Direct stop (double acting), vertical mounting type.
Product form

Stopper Cylinder (Direct Stop Type),Cylinder Bore:32mm,Stroke:20mm,Operation Type:Double Acting,Port Thread:G Thread,Magnet:Built-In,Applicable Sensor:RCE / RCE1 / RDEP,Operating Fluid:Air,Operating Pressure Range:0.2~1MPa,Withstand Pressure:1.5MPa,Ambient Temperature:-5~+60°C... Read more

SKU: MSBS-32-20-G

$288.92 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Stopper Cylinder (Direct Stop Type),Cylinder Bore:32mm,Stroke:20mm,Operation Type:Double Acting,Port Thread:G Thread,Magnet:Built-In,Applicable Sensor:RCE / RCE1 / RDEP,Operating Fluid:Air,Operating Pressure Range:0.2~1MPa,Withstand Pressure:1.5MPa,Ambient Temperature:-5~+60°C (Non-Freezing),Lubrication:Non-Lube,Cushion:NBR Bumper Pad

    Features

    • Cylinder bore: ø 20, 32, 50 (mm)
    • Direct stop (double acting), vertical mounting type.
