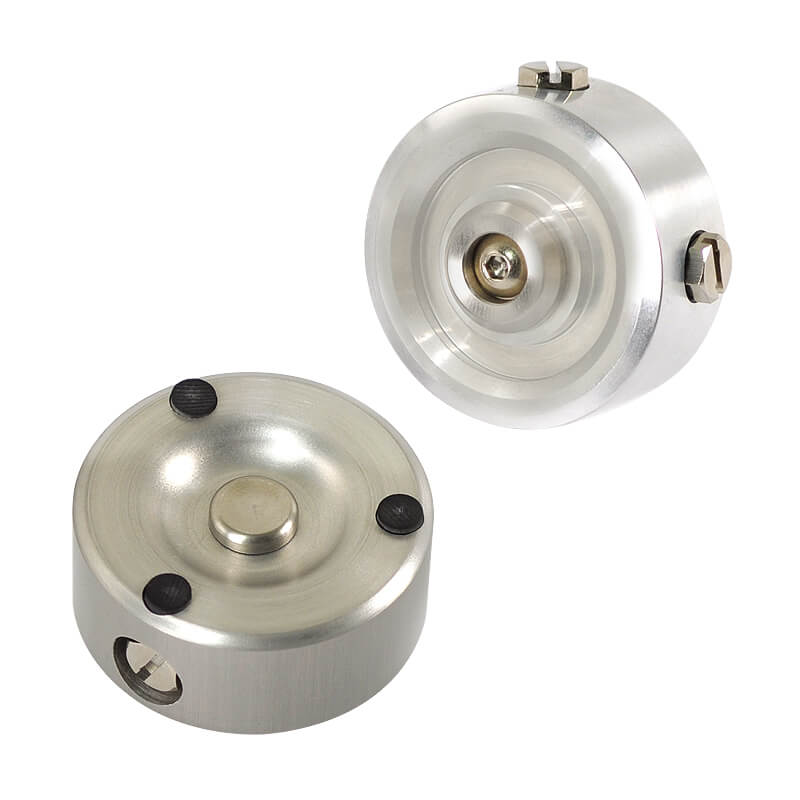

Mindman MHPSC Series: Non-Contact Suction Cup - MHPSC-30-CI

Description

Non-Contact Suction Cup,Size:30,Type:With 3 Rubber Cushion Contact Points,Port Size:M5,Operating Pressure Range:0.2~0.7MPa,Operating Fluid:Compressed Dry Air (Filtered 40μ)

Features

  • This applies the Bernoulli principle: positive pressure passes through a suitably designed structure and flows out at low pressure, creating a vacuum between the workpiece and the suction pad so that the workpiece is lifted.
Product form

Non-Contact Suction Cup,Size:30,Type:With 3 Rubber Cushion Contact Points,Port Size:M5,Operating Pressure Range:0.2~0.7MPa,Operating Fluid:Compressed Dry Air (Filtered 40μ)FeaturesThis applies the Bernoulli principle:... Read more

SKU: MHPSC-30-CI

$84.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Non-Contact Suction Cup,Size:30,Type:With 3 Rubber Cushion Contact Points,Port Size:M5,Operating Pressure Range:0.2~0.7MPa,Operating Fluid:Compressed Dry Air (Filtered 40μ)

    Features

    • This applies the Bernoulli principle: positive pressure passes through a suitably designed structure and flows out at low pressure, creating a vacuum between the workpiece and the suction pad so that the workpiece is lifted.
