Description

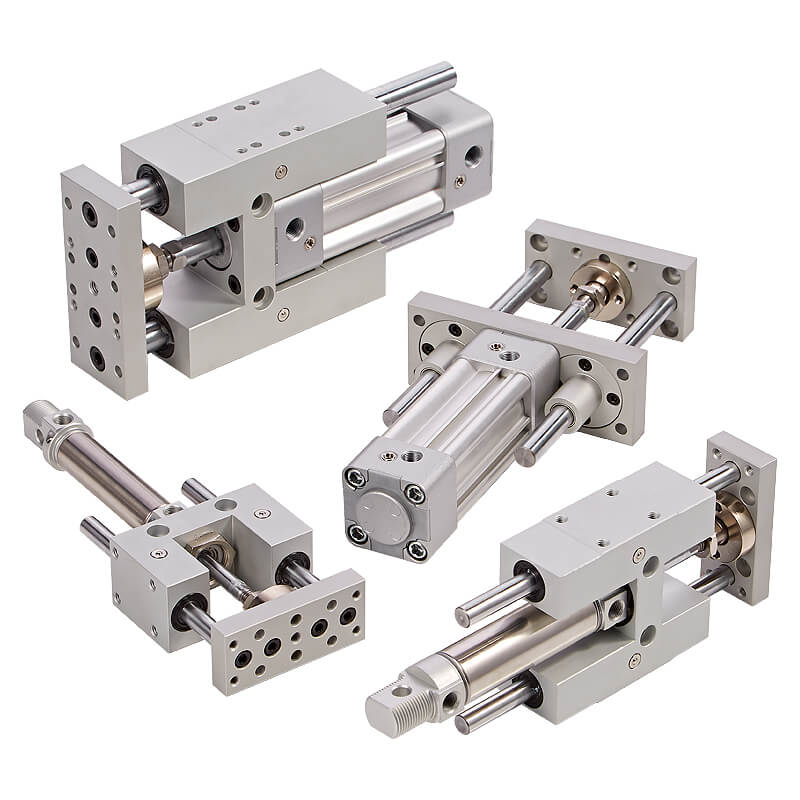

Twin Guide Rod Cylinder,Type:Sliding Bearing Economy Type,Cylinder Bore:ø25,Stroke:200mm,Rear Support Plate:None
Features
- The guide cylinder combines an ISO 6432 / ISO 15552 cylinder with peripheral components, giving outstanding resistance to rotation, torque and side loads.
- Four plain bearings or linear ball bearings provide higher load capacity or greater precision.
- Saves considerable time in mechanism design, drawing and installation, with a simple structure.
- Compared with the MCG* series, this series offers longer strokes and larger bores.
- ø32~ø63 cylinder tubes have recessed sensor mounting grooves on all four sides, so the sensor position can be changed to suit the application.
- Adjustable end cushioning is fitted as standard.
- The entire series is magnet-equipped.
