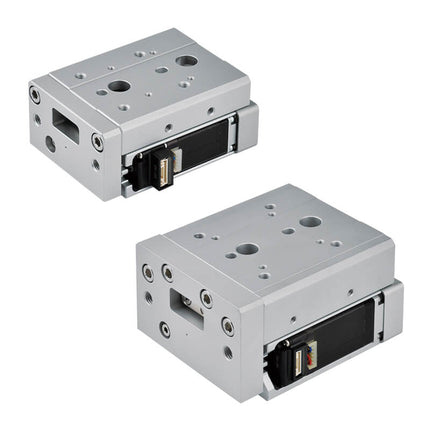

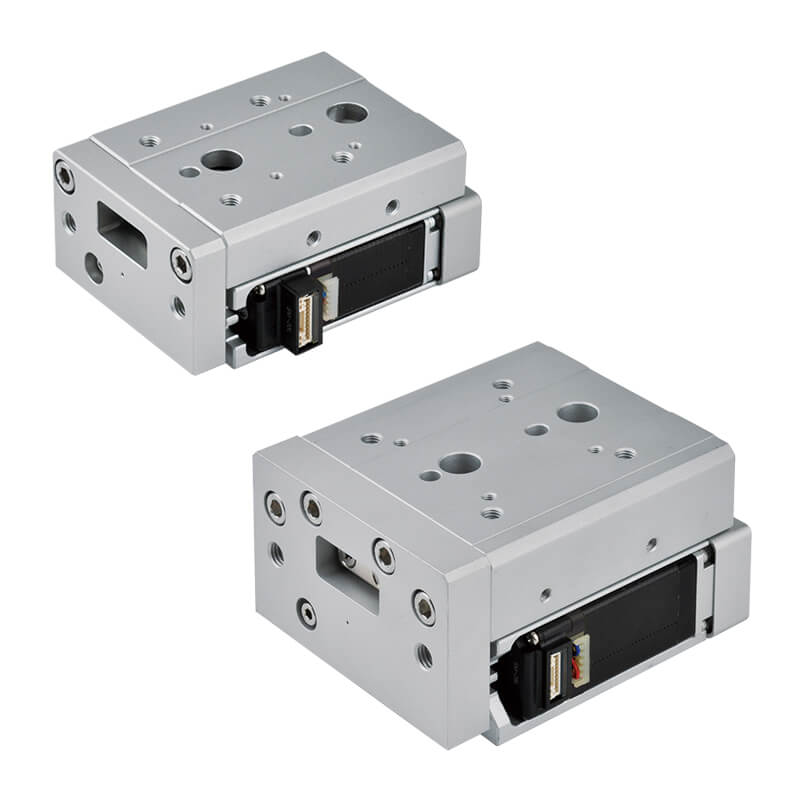

Mindman MESS2 Series: Miniature Electric Cylinder (With Motor) - MESS2-25L02-30-CM10-05

Description

Miniature Electric Cylinder (With Motor),Specification:25,Screw Lead:2mm,Stroke:30mm,Controller:CM10,Motor:OBM,Motor & Encoder Cable Length:5m

Features

  • Sizes: 16, 25
  • Positioning repeatability: ±0.02 mm
  • Screw lead: 16: 2 mm
  • 25: 2, 8 mm
  • Maximum speed *1: motor SM/BM: ≤50~≤400 mm/s
  • Motor OBM: ≤50~≤200 mm/s
  • Work load *2 horizontal use: 3 kg (16), 1.5, 6 kg (20)
  • Vertical use: 0.8 kg (16), 0.8, 1.8 kg (20)
  • Thrust *1, 3, 4: 18~195 N
Product form

Miniature Electric Cylinder (With Motor),Specification:25,Screw Lead:2mm,Stroke:30mm,Controller:CM10,Motor:OBM,Motor & Encoder Cable Length:5mFeatures Sizes: 16, 25 Positioning repeatability: ±0.02 mm Screw lead: 16:... Read more

SKU: MESS2-25L02-30-CM10-05

$686.90 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Miniature Electric Cylinder (With Motor),Specification:25,Screw Lead:2mm,Stroke:30mm,Controller:CM10,Motor:OBM,Motor & Encoder Cable Length:5m

    Features

    • Sizes: 16, 25
    • Positioning repeatability: ±0.02 mm
    • Screw lead: 16: 2 mm
    • 25: 2, 8 mm
    • Maximum speed *1: motor SM/BM: ≤50~≤400 mm/s
    • Motor OBM: ≤50~≤200 mm/s
    • Work load *2 horizontal use: 3 kg (16), 1.5, 6 kg (20)
    • Vertical use: 0.8 kg (16), 0.8, 1.8 kg (20)
    • Thrust *1, 3, 4: 18~195 N
