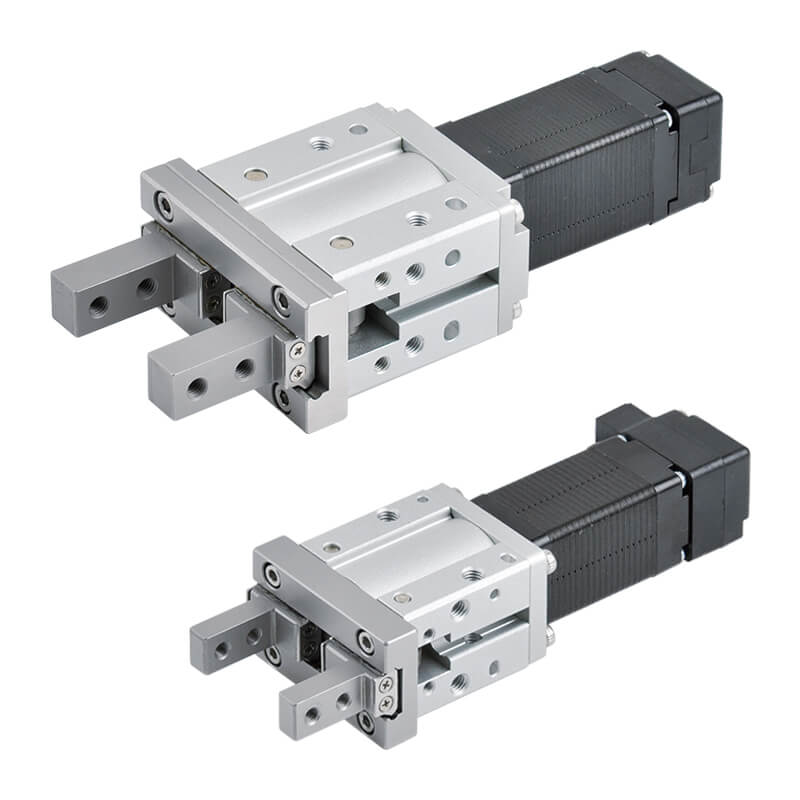

Mindman MEHC2 Series: Electric Gripper (With Motor) (Size 16) - MEHC2-16-N1-F-CK10-015-N-03

Description

Electric Gripper (With Motor),Specification:16,Gripper Type:Narrow Type Side Tapped,Motor Cable Outlet Direction:Vertical Lead Outlet,Controller:Thrust Type Controller CK10,Motor:SM Motor,Motor Cable + Encoder Cable:1.5m (Standard),Contact Type:NPN,I/O Cable Length:3m

Features

  • Sizes: 16, 25
  • Gripping force (※1): 16: 19.5N; 25: 26N
  • Opening/closing stroke (※2): 16: 6mm; 25: 14mm
  • Screw lead: 1.5mm
  • Screw stroke (※2,3): 16: 3.5mm; 25: 7.4mm
  • Repeatability (※4): ±0.02mm
  • Motor size: 16: □20mm; 25: □28mm
  • Controller voltage: DC24 V ±10%
Product form

Electric Gripper (With Motor),Specification:16,Gripper Type:Narrow Type Side Tapped,Motor Cable Outlet Direction:Vertical Lead Outlet,Controller:Thrust Type Controller CK10,Motor:SM Motor,Motor Cable + Encoder... Read more

SKU: MEHC2-16-N1-F-CK10-015-N-03

$609.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Electric Gripper (With Motor),Specification:16,Gripper Type:Narrow Type Side Tapped,Motor Cable Outlet Direction:Vertical Lead Outlet,Controller:Thrust Type Controller CK10,Motor:SM Motor,Motor Cable + Encoder Cable:1.5m (Standard),Contact Type:NPN,I/O Cable Length:3m

    Features

    • Sizes: 16, 25
    • Gripping force (※1): 16: 19.5N; 25: 26N
    • Opening/closing stroke (※2): 16: 6mm; 25: 14mm
    • Screw lead: 1.5mm
    • Screw stroke (※2,3): 16: 3.5mm; 25: 7.4mm
    • Repeatability (※4): ±0.02mm
    • Motor size: 16: □20mm; 25: □28mm
    • Controller voltage: DC24 V ±10%
