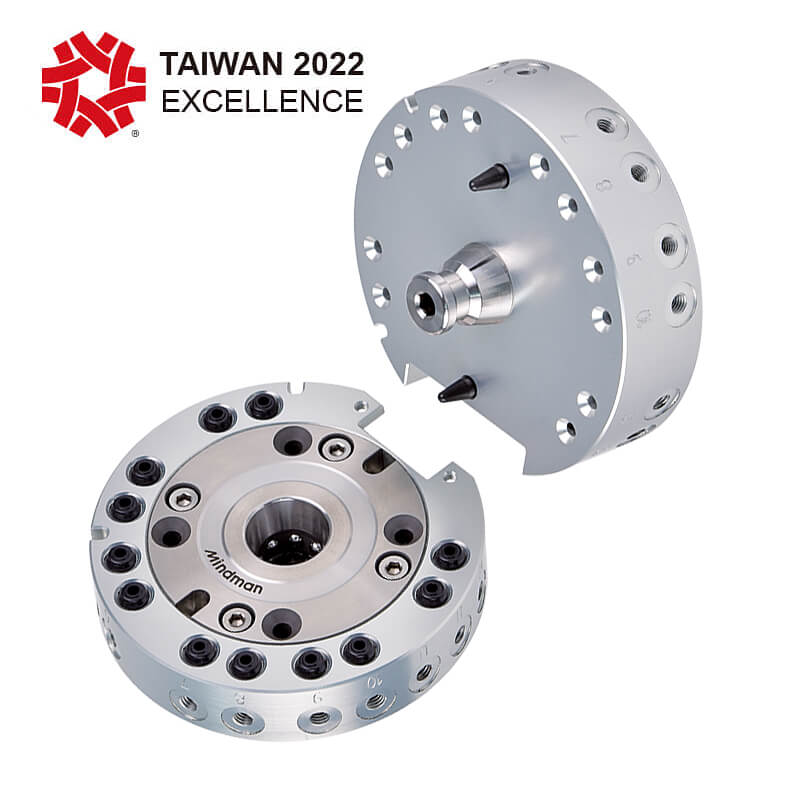

Mindman MCTC Series: Quick Jaw Change Mechanism - MCTC-41T-NPT

Description

Quick Jaw Change Mechanism,Specification:41,Body Type:Tool Side,Proximity Sensor Type:Standard,Port Thread:NPT Thread

Features

  • One robot-side unit can serve several tool-side units (grippers, pneumatic tools, vacuum pads and so on), giving production flexibility, saving changeover time and cutting labour costs.
  • High rigidity: the draw bolt and locating pins are specially treated for high strength and long service life.
  • High positioning accuracy: the tapered locating design self-aligns for fast positioning, achieving a repeatability of ±0.015mm.
  • Ejection mechanism: ensures the robot side (R) and tool side (T) separate smoothly.
  • Safety self-locking mechanism: an air supply cut-off protection mechanism keeps the robot side (R) and tool side (T) from coming apart.
  • Used with electrical modules for signal transmission, it improves the accuracy of frequent connect/disconnect signals and reduces the chance of manual setting errors.
  • With the ISO adapter plate it can be fitted easily to most types of robot arm.
Product form

Quick Jaw Change Mechanism,Specification:41,Body Type:Tool Side,Proximity Sensor Type:Standard,Port Thread:NPT ThreadFeatures One robot-side unit can serve several tool-side units (grippers, pneumatic... Read more

SKU: MCTC-41T-NPT

$243.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Quick Jaw Change Mechanism,Specification:41,Body Type:Tool Side,Proximity Sensor Type:Standard,Port Thread:NPT Thread

    Features

    • One robot-side unit can serve several tool-side units (grippers, pneumatic tools, vacuum pads and so on), giving production flexibility, saving changeover time and cutting labour costs.
    • High rigidity: the draw bolt and locating pins are specially treated for high strength and long service life.
    • High positioning accuracy: the tapered locating design self-aligns for fast positioning, achieving a repeatability of ±0.015mm.
    • Ejection mechanism: ensures the robot side (R) and tool side (T) separate smoothly.
    • Safety self-locking mechanism: an air supply cut-off protection mechanism keeps the robot side (R) and tool side (T) from coming apart.
    • Used with electrical modules for signal transmission, it improves the accuracy of frequent connect/disconnect signals and reduces the chance of manual setting errors.
    • With the ISO adapter plate it can be fitted easily to most types of robot arm.
