Description

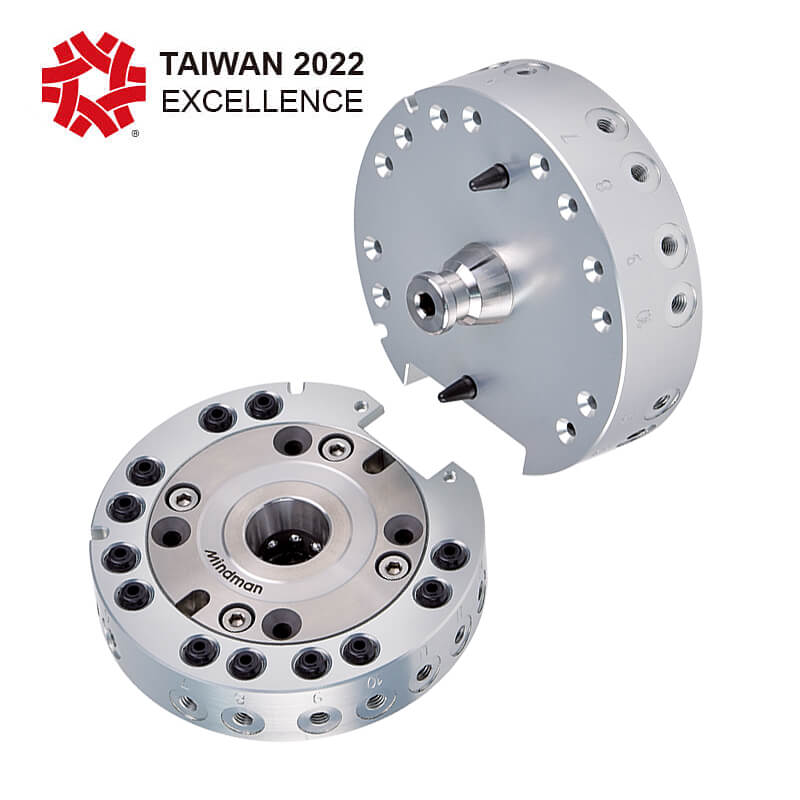

Quick Jaw Change Mechanism,Specification:41,Body Type:T-Handle End + Tool End (Complete Set),Proximity Sensor Type:Standard,Port Thread:G Thread
Features
- One robot-side unit can serve several tool-side units (grippers, pneumatic tools, vacuum pads and so on), giving production flexibility, saving changeover time and cutting labour costs.
- High rigidity: the draw bolt and locating pins are specially treated for high strength and long service life.
- High positioning accuracy: the tapered locating design self-aligns for fast positioning, achieving a repeatability of ±0.015mm.
- Ejection mechanism: ensures the robot side (R) and tool side (T) separate smoothly.
- Safety self-locking mechanism: an air supply cut-off protection mechanism keeps the robot side (R) and tool side (T) from coming apart.
- Used with electrical modules for signal transmission, it improves the accuracy of frequent connect/disconnect signals and reduces the chance of manual setting errors.
- With the ISO adapter plate it can be fitted easily to most types of robot arm.
