Mindman MCTC Series: Electrical Module - K19-MCTC-20T

Description

Electrical Module (19Pin),Body Type:Tool Side,Specification:20

Features

  • One robot-side unit can serve several tool-side units (grippers, pneumatic tools, vacuum pads and so on), giving production flexibility, saving changeover time and cutting labour costs.
  • High rigidity: the draw bolt and locating pins are specially treated for high strength and long service life.
  • High positioning accuracy: the tapered locating design self-aligns for fast positioning, achieving a repeatability of ±0.015mm.
  • Ejection mechanism: ensures the robot side (R) and tool side (T) separate smoothly.
  • Safety self-locking mechanism: an air supply cut-off protection mechanism keeps the robot side (R) and tool side (T) from coming apart.
  • Used with electrical modules for signal transmission, it improves the accuracy of frequent connect/disconnect signals and reduces the chance of manual setting errors.
  • With the ISO adapter plate it can be fitted easily to most types of robot arm.
Product form

Electrical Module (19Pin),Body Type:Tool Side,Specification:20Features One robot-side unit can serve several tool-side units (grippers, pneumatic tools, vacuum pads and so... Read more

SKU: K19-MCTC-20T

$68.40 Excl. VAT

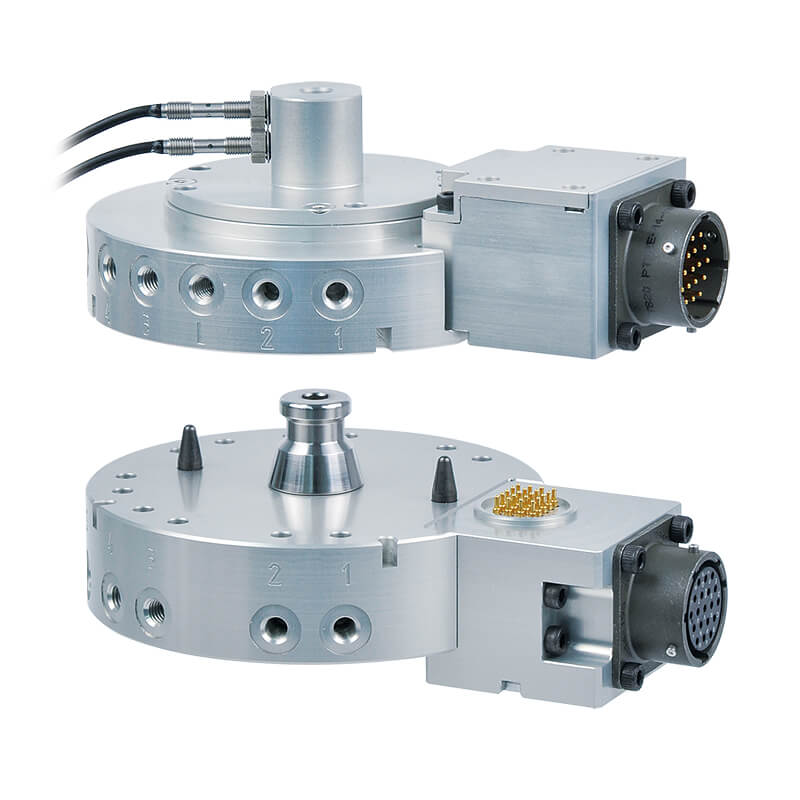

    • Image may not be representative of actual product.

    Description

    Electrical Module (19Pin),Body Type:Tool Side,Specification:20

    Features

    • One robot-side unit can serve several tool-side units (grippers, pneumatic tools, vacuum pads and so on), giving production flexibility, saving changeover time and cutting labour costs.
    • High rigidity: the draw bolt and locating pins are specially treated for high strength and long service life.
    • High positioning accuracy: the tapered locating design self-aligns for fast positioning, achieving a repeatability of ±0.015mm.
    • Ejection mechanism: ensures the robot side (R) and tool side (T) separate smoothly.
    • Safety self-locking mechanism: an air supply cut-off protection mechanism keeps the robot side (R) and tool side (T) from coming apart.
    • Used with electrical modules for signal transmission, it improves the accuracy of frequent connect/disconnect signals and reduces the chance of manual setting errors.
    • With the ISO adapter plate it can be fitted easily to most types of robot arm.
