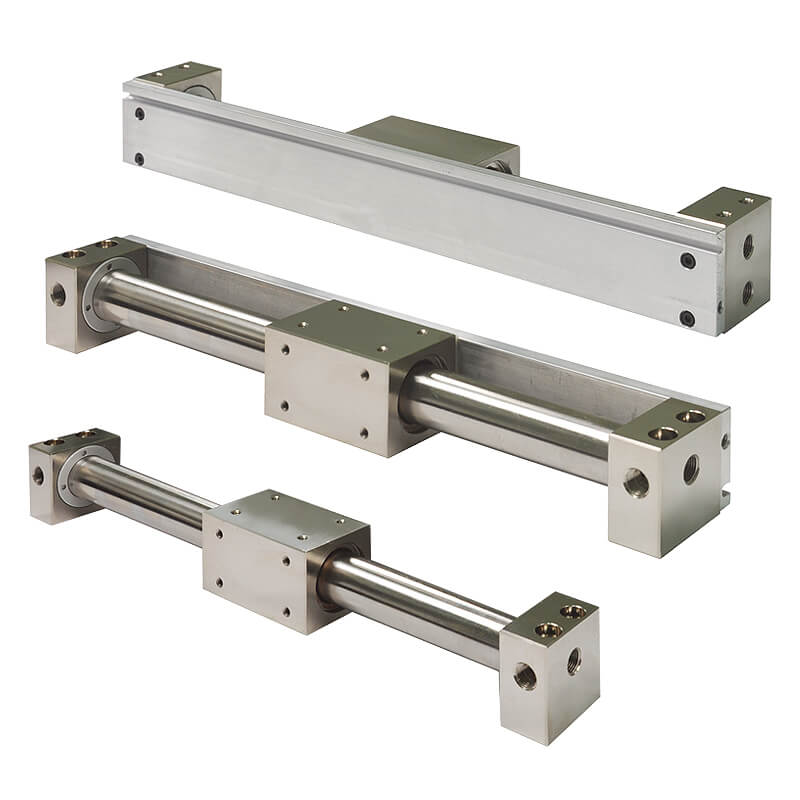

Mindman MCRPMD Series: Magnetically Coupled Rodless Cylinder - MCRPMD-32-100-AS

Description

Magnetically Coupled Rodless Cylinder,Piping Type:Both Side Piping (With Magnet),Cylinder Bore:32mm,Stroke:100mm,Magnet:With Magnet,Cushion Type:Adjustable Air Cushion,Lubricating Oil:Low Speed Oil,Port Thread:Rc Thread

Features

  • Saves 50% space.
  • Magnetically coupled design: the internal magnet ring on the piston and the external magnet ring in the slide table transmit power radially by magnetic force to drive the load.
  • Stainless steel cylinder tube design: light in weight and high in rigidity.
Product form

Magnetically Coupled Rodless Cylinder,Piping Type:Both Side Piping (With Magnet),Cylinder Bore:32mm,Stroke:100mm,Magnet:With Magnet,Cushion Type:Adjustable Air Cushion,Lubricating Oil:Low Speed Oil,Port Thread:Rc ThreadFeatures Saves... Read more

SKU: MCRPMD-32-100-AS

$257.80 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Magnetically Coupled Rodless Cylinder,Piping Type:Both Side Piping (With Magnet),Cylinder Bore:32mm,Stroke:100mm,Magnet:With Magnet,Cushion Type:Adjustable Air Cushion,Lubricating Oil:Low Speed Oil,Port Thread:Rc Thread

    Features

    • Saves 50% space.
    • Magnetically coupled design: the internal magnet ring on the piston and the external magnet ring in the slide table transmit power radially by magnetic force to drive the load.
    • Stainless steel cylinder tube design: light in weight and high in rigidity.
