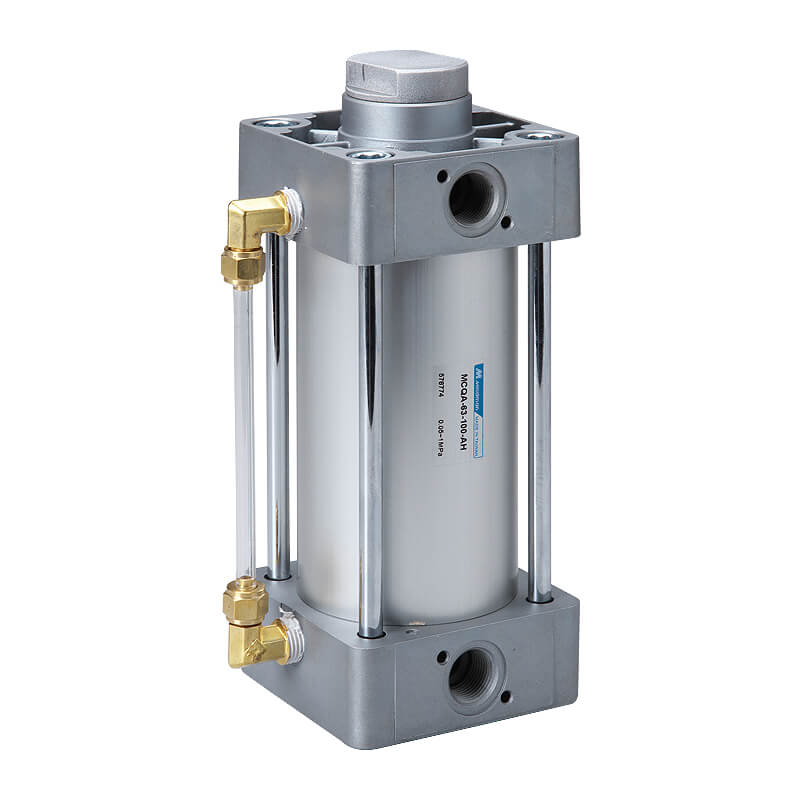

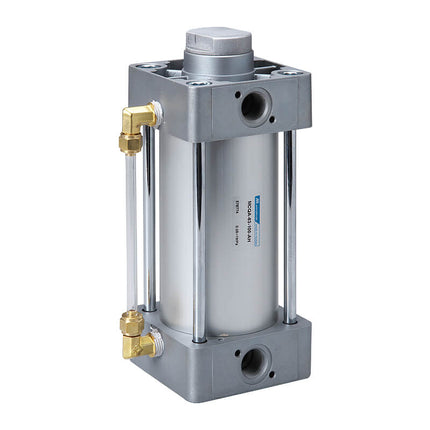

Mindman MCQA-AH Series: Air-Hydro Converter Cylinder - MCQA-00-100-AH

Description

Air-Hydro Converter Cylinder,Acting Type:No Actuation,Cylinder Bore:ø100mm,Length:Specify by Required Volume When Ordering,Type:Air-Hydro Converter Cylinder (AH),Hydraulic Oil:ISO VG32 Equivalent

Features

  • Recommendation: the oil level displacement volume of the converter should be about 50% of its total internal volume.
  • When the actuating cylinder operates, the maximum permissible rise speed of the oil level in the converter is 200mm/sec.
  • The specified hydraulic oil for the converter is equivalent to ISO VG32 grade.
  • When the oil in the converter reaches its highest level, the total volume of oil must not exceed 80% of the converter's total internal volume.
  • The converter must be mounted vertically and above the actuating cylinder.
Product form

Air-Hydro Converter Cylinder,Acting Type:No Actuation,Cylinder Bore:ø100mm,Length:Specify by Required Volume When Ordering,Type:Air-Hydro Converter Cylinder (AH),Hydraulic Oil:ISO VG32 EquivalentFeatures Recommendation: the oil... Read more

SKU: MCQA-00-100-AH

$560.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Air-Hydro Converter Cylinder,Acting Type:No Actuation,Cylinder Bore:ø100mm,Length:Specify by Required Volume When Ordering,Type:Air-Hydro Converter Cylinder (AH),Hydraulic Oil:ISO VG32 Equivalent

    Features

    • Recommendation: the oil level displacement volume of the converter should be about 50% of its total internal volume.
    • When the actuating cylinder operates, the maximum permissible rise speed of the oil level in the converter is 200mm/sec.
    • The specified hydraulic oil for the converter is equivalent to ISO VG32 grade.
    • When the oil in the converter reaches its highest level, the total volume of oil must not exceed 80% of the converter's total internal volume.
    • The converter must be mounted vertically and above the actuating cylinder.
