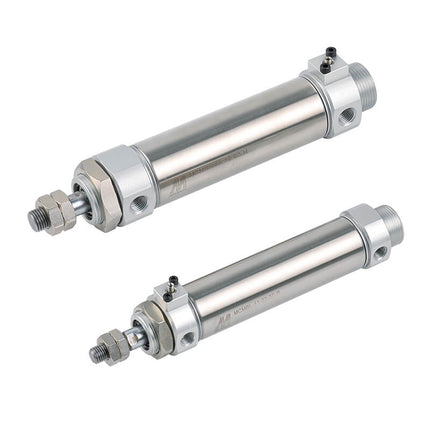

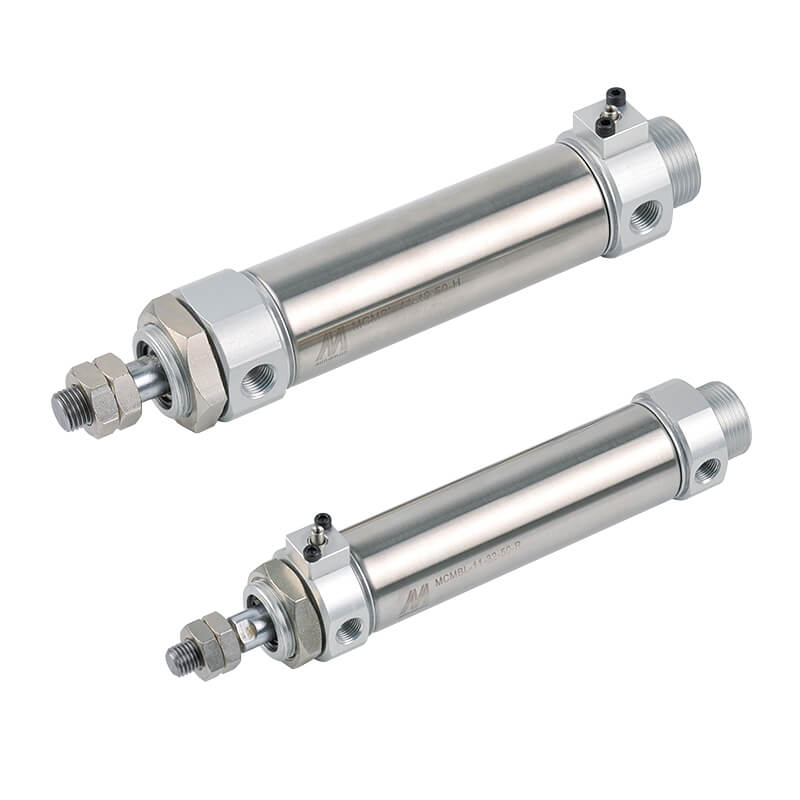

Mindman MCMBL Series: End-Lock Cylinder - MCMBL-11-32-75-AH

Description

End-Lock Cylinder,Acting Type:Single Rod Double Acting Male Thread,Cylinder Bore:32mm,Stroke:75mm,End Lock Type:Rear Cover Type,Cushion Type:Adjustable Air Cushion,Port Thread:Rc Thread

Features

  • When the cylinder reaches either end of its stroke, the piston rod position stays locked even without a pressure supply.
  • Lubrication-free: oil-impregnated alloy and special bearing bushes mean the piston rod needs no lubrication.
  • High quality, excellent durability: the cylinder is made of high-grade stainless steel for greater wear and corrosion resistance.
  • Wide choice of brackets: a variety of fixed and non-fixed mountings is available.
  • The entire series is magnet-equipped.
Product form

End-Lock Cylinder,Acting Type:Single Rod Double Acting Male Thread,Cylinder Bore:32mm,Stroke:75mm,End Lock Type:Rear Cover Type,Cushion Type:Adjustable Air Cushion,Port Thread:Rc ThreadFeatures When the... Read more

SKU: MCMBL-11-32-75-AH

$137.72 Excl. VAT

    • Image may not be representative of actual product.

    Description

    End-Lock Cylinder,Acting Type:Single Rod Double Acting Male Thread,Cylinder Bore:32mm,Stroke:75mm,End Lock Type:Rear Cover Type,Cushion Type:Adjustable Air Cushion,Port Thread:Rc Thread

    Features

    • When the cylinder reaches either end of its stroke, the piston rod position stays locked even without a pressure supply.
    • Lubrication-free: oil-impregnated alloy and special bearing bushes mean the piston rod needs no lubrication.
    • High quality, excellent durability: the cylinder is made of high-grade stainless steel for greater wear and corrosion resistance.
    • Wide choice of brackets: a variety of fixed and non-fixed mountings is available.
    • The entire series is magnet-equipped.
