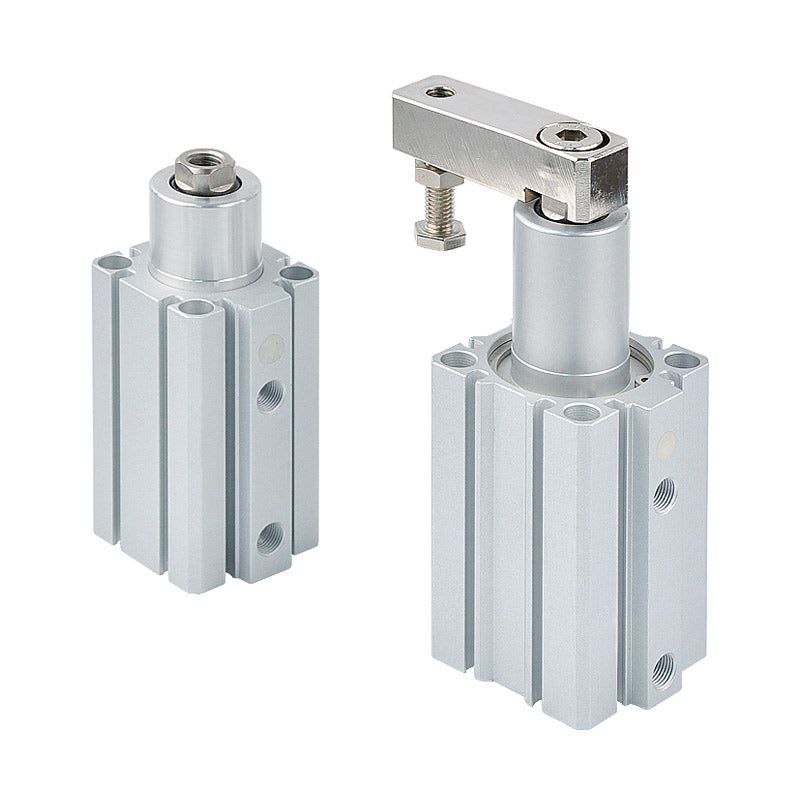

Mindman MCKC Series: Pneumatic Swing Clamp Cylinder - MCKC-63-50-RN

Description

Pneumatic Swing Clamp Cylinder,Cylinder Bore:ø63mm,Vertical Down Stroke:50mm,Rotation Direction:Clockwise (CW),Clamp Arm:Without,Port Thread:Rc Thread

Features

  • Every product in this series is mounted using counterbored tapped holes, so no fixing brackets are needed, meeting the requirement for space-saving installation.
  • Mounting grooves are formed around the outside of the cylinder tube during extrusion, making sensor mounting and position adjustment extremely simple.
  • The sensor mounting direction can be chosen freely, with fixing possible on all four sides.
  • The entire series is supplied with a magnet.
Product form

Pneumatic Swing Clamp Cylinder,Cylinder Bore:ø63mm,Vertical Down Stroke:50mm,Rotation Direction:Clockwise (CW),Clamp Arm:Without,Port Thread:Rc ThreadFeatures Every product in this series is mounted using... Read more

SKU: MCKC-63-50-RN

$178.91 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Pneumatic Swing Clamp Cylinder,Cylinder Bore:ø63mm,Vertical Down Stroke:50mm,Rotation Direction:Clockwise (CW),Clamp Arm:Without,Port Thread:Rc Thread

    Features

    • Every product in this series is mounted using counterbored tapped holes, so no fixing brackets are needed, meeting the requirement for space-saving installation.
    • Mounting grooves are formed around the outside of the cylinder tube during extrusion, making sensor mounting and position adjustment extremely simple.
    • The sensor mounting direction can be chosen freely, with fixing possible on all four sides.
    • The entire series is supplied with a magnet.
