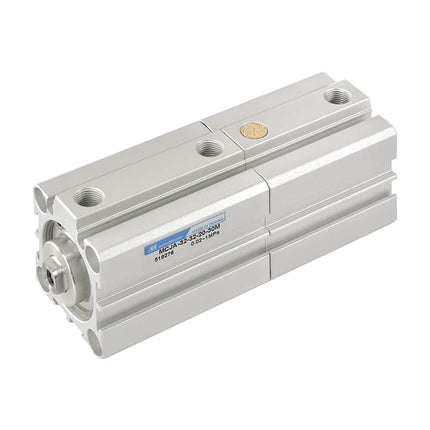

Mindman MCJA Multi-Position Type Series: Compact Cylinder (Jig Cylinder) - MCJA-31-20-25×40

Description

Compact Cylinder (Jig Cylinder) (Multi-Position Type),Acting Type / Rod End Thread:Double Acting Male Thread,Cylinder Bore:ø20,First Stroke:25mm,Total Stroke:40mm,Magnet:Without Magnet,Port Thread:M5×0.8

Features

  • Designed by Mindman for efficiency, low cost and easy installation and use.
  • Every model in this series is mounted using counterbored tapped holes, so no mounting feet are required and installation space is saved.
  • The body is made from carefully selected aluminium alloy with a hard anodised finish for greater wear and corrosion resistance; combined with precision assembly technology and strict 100% inspection, this delivers thoroughly dependable quality.
  • Mounting grooves are formed around the outside of the barrel during extrusion, making sensor mounting and position adjustment extremely simple.
Product form

Compact Cylinder (Jig Cylinder) (Multi-Position Type),Acting Type / Rod End Thread:Double Acting Male Thread,Cylinder Bore:ø20,First Stroke:25mm,Total Stroke:40mm,Magnet:Without Magnet,Port Thread:M5×0.8Features Designed... Read more

SKU: MCJA-31-20-25×40

$71.88 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Compact Cylinder (Jig Cylinder) (Multi-Position Type),Acting Type / Rod End Thread:Double Acting Male Thread,Cylinder Bore:ø20,First Stroke:25mm,Total Stroke:40mm,Magnet:Without Magnet,Port Thread:M5×0.8

    Features

    • Designed by Mindman for efficiency, low cost and easy installation and use.
    • Every model in this series is mounted using counterbored tapped holes, so no mounting feet are required and installation space is saved.
    • The body is made from carefully selected aluminium alloy with a hard anodised finish for greater wear and corrosion resistance; combined with precision assembly technology and strict 100% inspection, this delivers thoroughly dependable quality.
    • Mounting grooves are formed around the outside of the barrel during extrusion, making sensor mounting and position adjustment extremely simple.
