Description

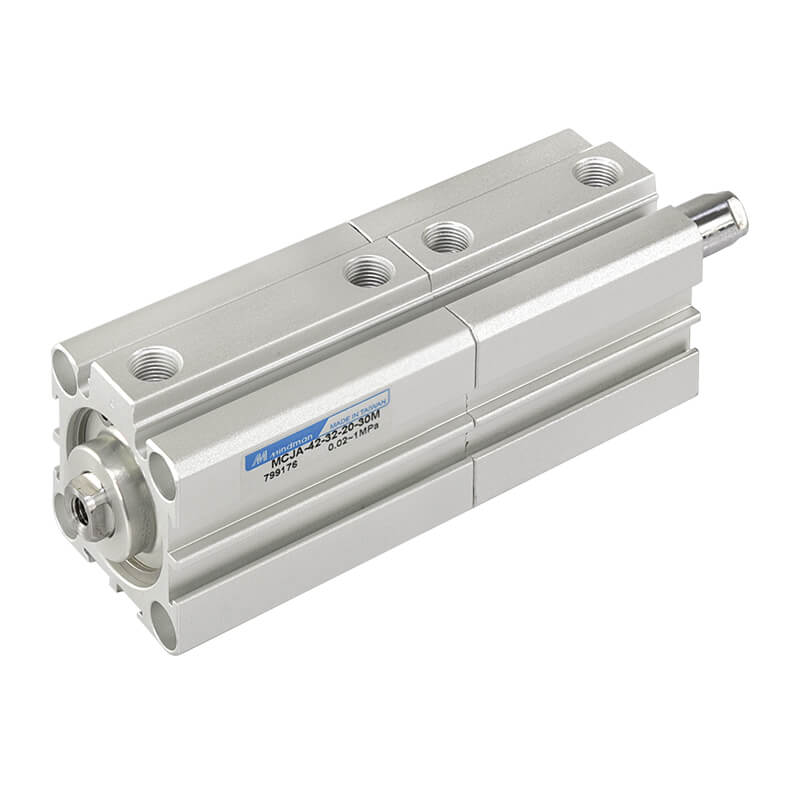

Compact Cylinder (Jig Cylinder),Double-Ended Type,Acting Type / Rod End Thread:Double Acting Male Thread,Acting Type:Double Acting,Cylinder Bore:ø63mm,Port Size:Rc1/4,Stroke 1 (First Stage Stroke):30mm,Stroke 2 (Second Stage Stroke):5mm,Magnet:With Magnet,Port Thread:NPT Thread
Features
- Designed by Mindman for efficiency, low cost and easy installation and use.
- Every model in this series is mounted using counterbored tapped holes, so no mounting feet are required and installation space is saved.
- The body is made from carefully selected aluminium alloy with a hard anodised finish for greater wear and corrosion resistance; combined with precision assembly technology and strict 100% inspection, this delivers thoroughly dependable quality.
- Mounting grooves are formed around the outside of the barrel during extrusion, making sensor mounting and position adjustment extremely simple.
