Description

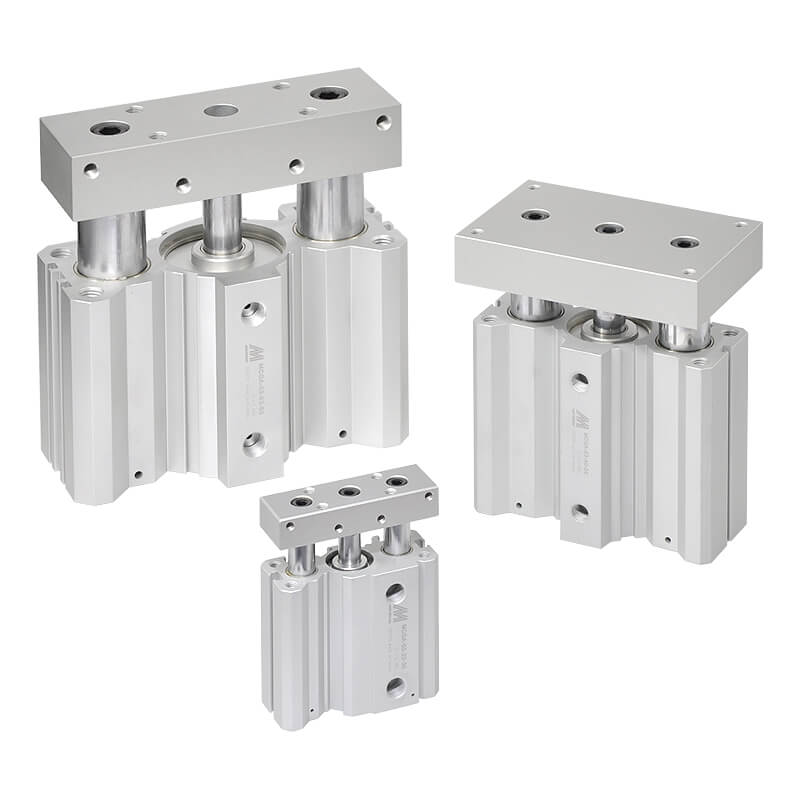

Twin Guide Rod Cylinder,Application:Stopper Type,Bearing Type:Sliding Bearing,Cylinder Bore:ø32mm,Stroke:100mm,Port Thread:Rc Thread,Port Size:1/8
Features
- The guide rods and the connecting block use an inset construction, giving outstanding rigidity and strength when heavy side loads are applied.
- To suit different applications, the connecting block at the guide rod end is available in two types: a column block (for stopper applications) and a platform block (for lifting applications).
- To suit the accuracy required in use, the guide rod bearing section is available with either a slide bearing or a linear ball bearing.
- A variety of mounting arrangements is pre-configured on the outside of the cylinder body and on the connecting block for convenient installation.
- The entire series is supplied with a magnet.
