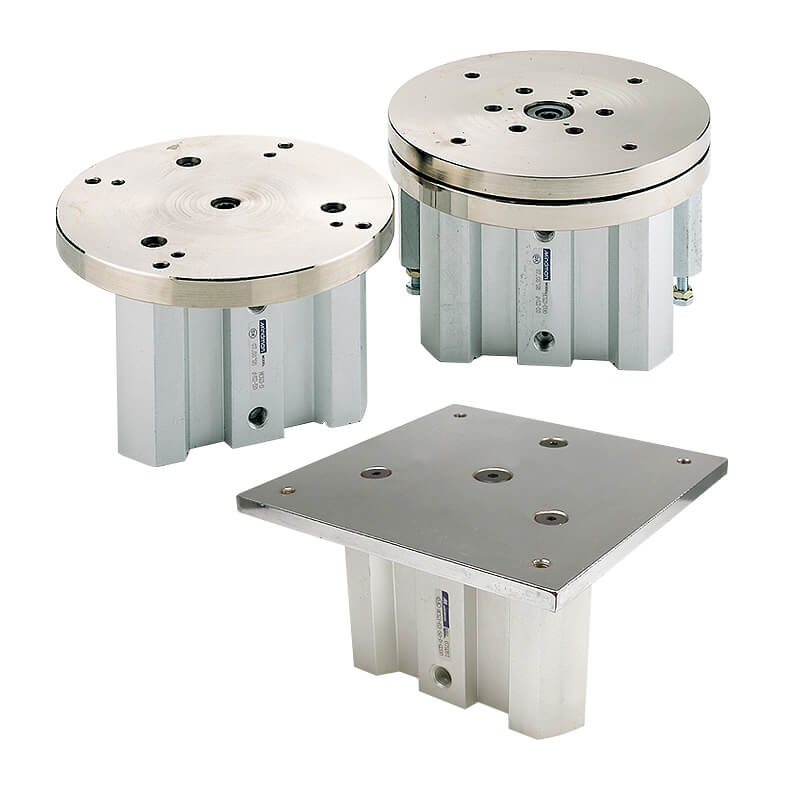

Mindman MCG3 Series: Triple Guide Rod Cylinder - MCG3-63-100-D180-NPT

Description

Triple Guide Rod Cylinder,Cylinder Bore:63mm,Stroke:100mm,Application / Bearing Type:Rotary Table Type / 180° Index Angle / Slide Bearing,Port Thread:NPT Thread

Features

  • Three guide rods and the body form an integrated, compact structure arranged as an equilateral triangle, saving still more installation space while improving resistance to eccentric loads and resolving the tilting they cause.
  • Two guide rod bearing types are offered to suit the accuracy required: plain sliding bearings and linear ball bearings.
  • When installing, mount the large round platform onto the original module platform and secure the body firmly to a stable base.
  • Magnet fitted as standard throughout the series.
Product form

Triple Guide Rod Cylinder,Cylinder Bore:63mm,Stroke:100mm,Application / Bearing Type:Rotary Table Type / 180° Index Angle / Slide Bearing,Port Thread:NPT ThreadFeatures Three... Read more

SKU: MCG3-63-100-D180-NPT

$1,410.70 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Triple Guide Rod Cylinder,Cylinder Bore:63mm,Stroke:100mm,Application / Bearing Type:Rotary Table Type / 180° Index Angle / Slide Bearing,Port Thread:NPT Thread

    Features

    • Three guide rods and the body form an integrated, compact structure arranged as an equilateral triangle, saving still more installation space while improving resistance to eccentric loads and resolving the tilting they cause.
    • Two guide rod bearing types are offered to suit the accuracy required: plain sliding bearings and linear ball bearings.
    • When installing, mount the large round platform onto the original module platform and secure the body firmly to a stable base.
    • Magnet fitted as standard throughout the series.
