Mindman MCCH Series: High-Speed Cylinder - MCCH-11-25-550-G

Description

High-Speed Cylinder,Acting Type:Double Acting Male Thread (Single Rod),Cylinder Bore:ø25mm,Stroke:550mm,Cushion:Air Cushion (Full Cylinder Speed Up To 50~3000mm/sec),Port Thread:G Thread

Features

  • Enlarged port bore meets high-speed requirements, with speeds of up to 3000mm/sec.
  • The longer cushion shaft absorbs greater kinetic energy, reducing the need for external shock absorbers.
  • The special relief valve design gives better cushioning than the needle valves of general-purpose cylinders.
  • The relief valve body rotates freely through 360 degrees for easy adjustment.
  • Magnet fitted as standard throughout the series.
Product form

High-Speed Cylinder,Acting Type:Double Acting Male Thread (Single Rod),Cylinder Bore:ø25mm,Stroke:550mm,Cushion:Air Cushion (Full Cylinder Speed Up To 50~3000mm/sec),Port Thread:G ThreadFeatures Enlarged port... Read more

SKU: MCCH-11-25-550-G

$168.75 Excl. VAT

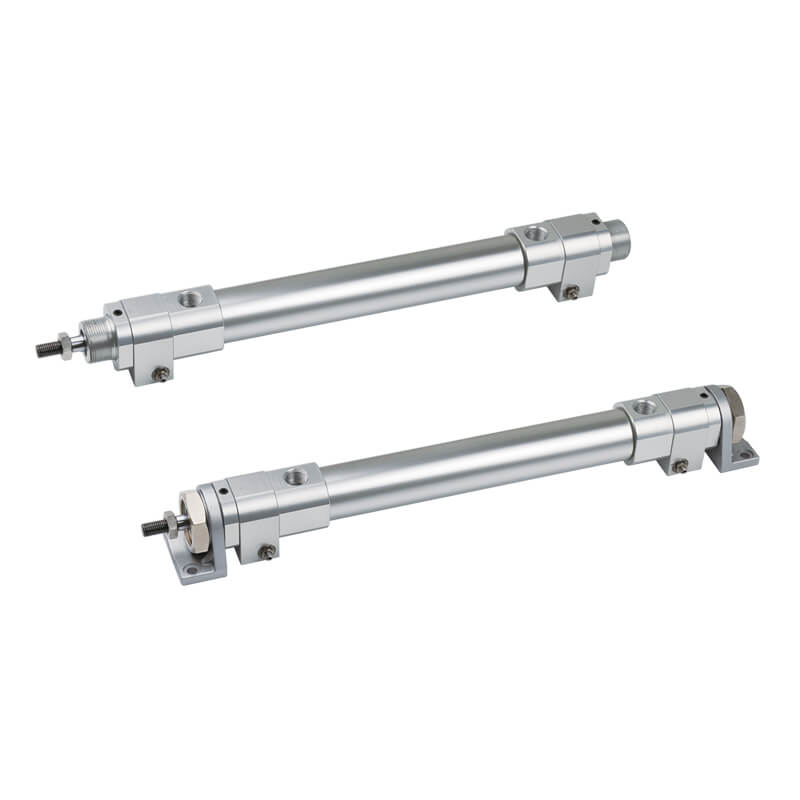

    • Image may not be representative of actual product.

    Description

    High-Speed Cylinder,Acting Type:Double Acting Male Thread (Single Rod),Cylinder Bore:ø25mm,Stroke:550mm,Cushion:Air Cushion (Full Cylinder Speed Up To 50~3000mm/sec),Port Thread:G Thread

    Features

    • Enlarged port bore meets high-speed requirements, with speeds of up to 3000mm/sec.
    • The longer cushion shaft absorbs greater kinetic energy, reducing the need for external shock absorbers.
    • The special relief valve design gives better cushioning than the needle valves of general-purpose cylinders.
    • The relief valve body rotates freely through 360 degrees for easy adjustment.
    • Magnet fitted as standard throughout the series.
