Description

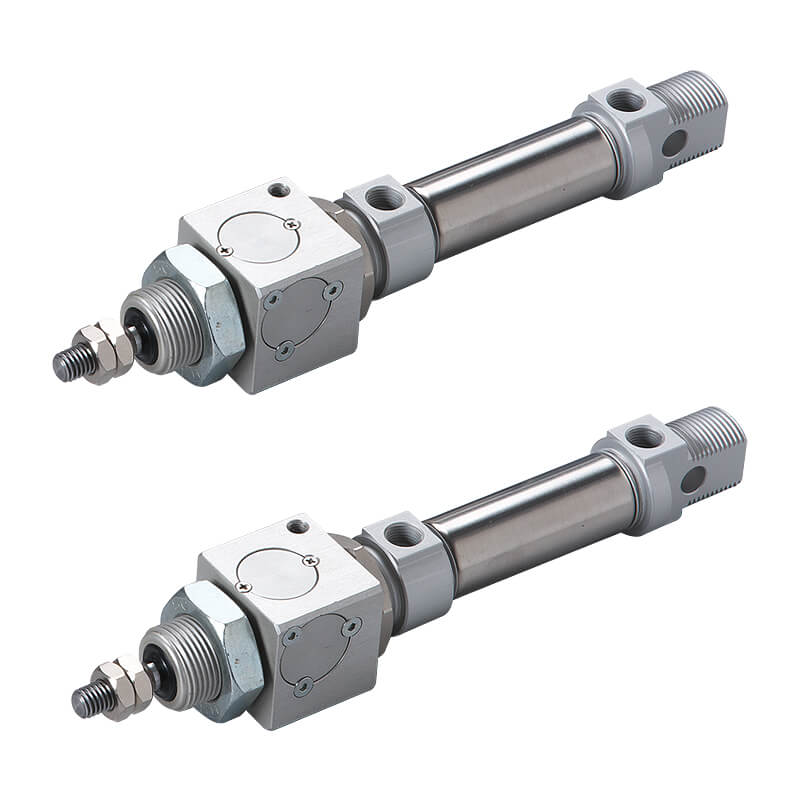

Locking Unit Cylinder,Type:MCBQI3,Acting Type:Double Acting Male Thread,Cylinder Bore:ø32mm,Standard Stroke:200mm,Magnet:With Magnet,Cushion Type:Adjustable Air Cushion,Locking Unit Braking Direction:Bi-Directional,Operating Pressure Range:0.3~0.6 MPa
Features
- Wide range of sizes: nine bore sizes from ø20 to ø125, all lockable at any position within the stroke.
- Braking function: braking is provided in both directions.
- Lubrication-free: oil-impregnated alloy and special bearing bushes mean the piston rod needs no lubrication.
- High quality and durability: the cylinder tube uses aluminium alloy and stainless steel for greater wear and corrosion resistance.
- ISO 15552 & ISO 6432 standard specifications: built to the ISO 15552 and ISO 6432 international standards, so most parts are interchangeable.
- Wide range of mountings: a variety of fixed and non-fixed mountings for the customer to choose from.
