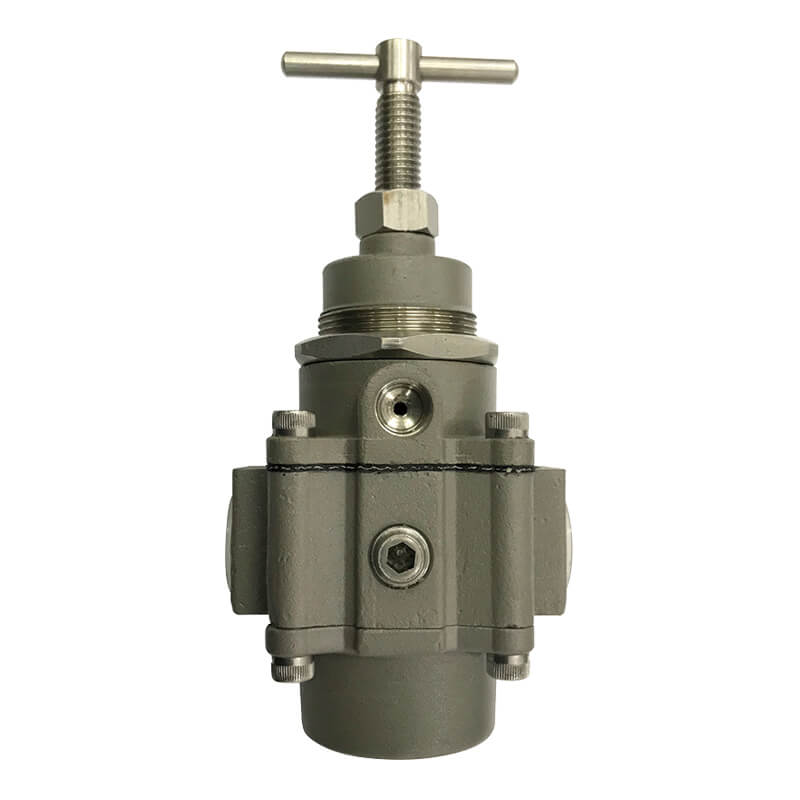

Mindman MAR411 Series: Air Preparation Unit (Regulator) - MAR411-20A-NPT

Description

Air Preparation Unit (Regulator),Material:Stainless Steel #316 (AISI 316L),Port Size:3/4,Flow Direction:Left → Right,Set Pressure Range:0.1-1MPa (T-Handle),Port Thread:NPT Thread,Operating Fluid:Air,Max. Operating Pressure:3MPa,Flow Rate:9260L/min,Ambient Temperature:-20 to +80°C (Non-Freezing)

Features

  • The body, adjusting mechanism, screws and nuts, bottom cover and internal parts are all made of AISI 316L.
  • Applications include marine environments, oil and gas production, chemical and food processing, medical analysis and more.
Product form

Air Preparation Unit (Regulator),Material:Stainless Steel #316 (AISI 316L),Port Size:3/4,Flow Direction:Left → Right,Set Pressure Range:0.1-1MPa (T-Handle),Port Thread:NPT Thread,Operating Fluid:Air,Max. Operating Pressure:3MPa,Flow... Read more

SKU: MAR411-20A-NPT

$223.82 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Air Preparation Unit (Regulator),Material:Stainless Steel #316 (AISI 316L),Port Size:3/4,Flow Direction:Left → Right,Set Pressure Range:0.1-1MPa (T-Handle),Port Thread:NPT Thread,Operating Fluid:Air,Max. Operating Pressure:3MPa,Flow Rate:9260L/min,Ambient Temperature:-20 to +80°C (Non-Freezing)

    Features

    • The body, adjusting mechanism, screws and nuts, bottom cover and internal parts are all made of AISI 316L.
    • Applications include marine environments, oil and gas production, chemical and food processing, medical analysis and more.
