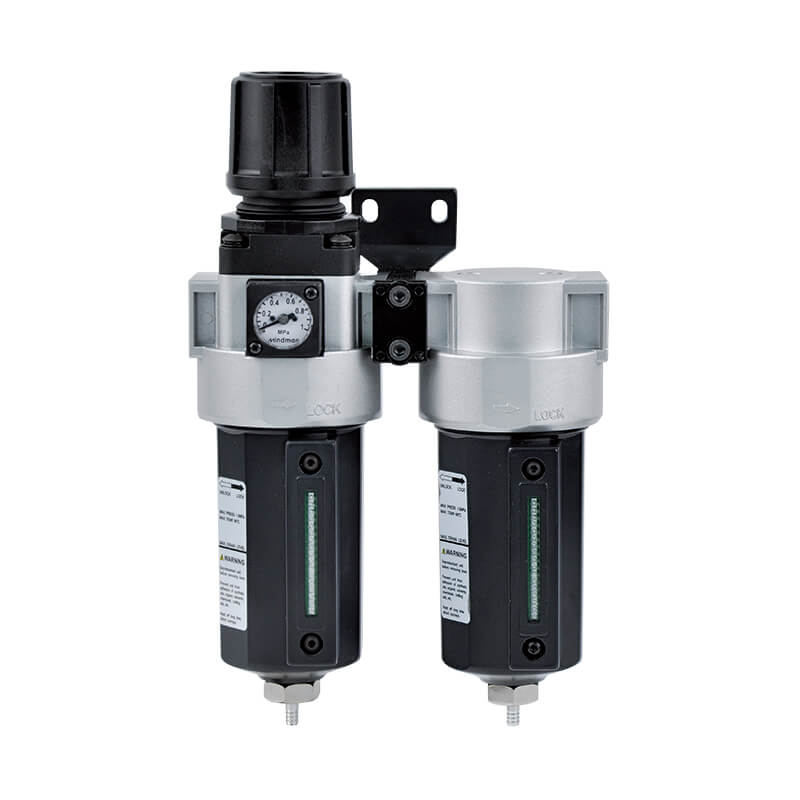

Mindman MAFRF401AD Series: Air Preparation Unit (Precision Filter Regulator) - MAFRF401AD-15A-D-NPT

Description

Air Preparation Unit (Precision Filter Regulator),Filtration Rating:5μm+0.3μm,Port Size:15A(1/2),Colour:Black & Silver,Type:Standard,Pressure Gauge:Pressure Gauge (PG-20),Drain Valve:Auto Drain Valve (FMRF300),Flow Direction:Left → Right,Digital Pressure Sensor:Without,Bracket:L-Type,Port Thread:NPT Thread

Features

  • Port size code: 8A, 10A, 15A
  • Port sizes: 1/4, 3/8, 1/2
  • Maximum operating pressure (※): 0.05~1.5 MPa
  • Pressure setting range: standard type 0.1~0.85 MPa; high-pressure type 0.1~1.5 MPa
  • Proof pressure: 2 MPa
  • Ambient temperature: -5~+60°C (non-freezing)
  • Filtration rating: 5μm+0.3μm
Product form

Air Preparation Unit (Precision Filter Regulator),Filtration Rating:5μm+0.3μm,Port Size:15A(1/2),Colour:Black & Silver,Type:Standard,Pressure Gauge:Pressure Gauge (PG-20),Drain Valve:Auto Drain Valve (FMRF300),Flow Direction:Left → Right,Digital... Read more

SKU: MAFRF401AD-15A-D-NPT

$166.65 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Air Preparation Unit (Precision Filter Regulator),Filtration Rating:5μm+0.3μm,Port Size:15A(1/2),Colour:Black & Silver,Type:Standard,Pressure Gauge:Pressure Gauge (PG-20),Drain Valve:Auto Drain Valve (FMRF300),Flow Direction:Left → Right,Digital Pressure Sensor:Without,Bracket:L-Type,Port Thread:NPT Thread

    Features

    • Port size code: 8A, 10A, 15A
    • Port sizes: 1/4, 3/8, 1/2
    • Maximum operating pressure (※): 0.05~1.5 MPa
    • Pressure setting range: standard type 0.1~0.85 MPa; high-pressure type 0.1~1.5 MPa
    • Proof pressure: 2 MPa
    • Ambient temperature: -5~+60°C (non-freezing)
    • Filtration rating: 5μm+0.3μm
