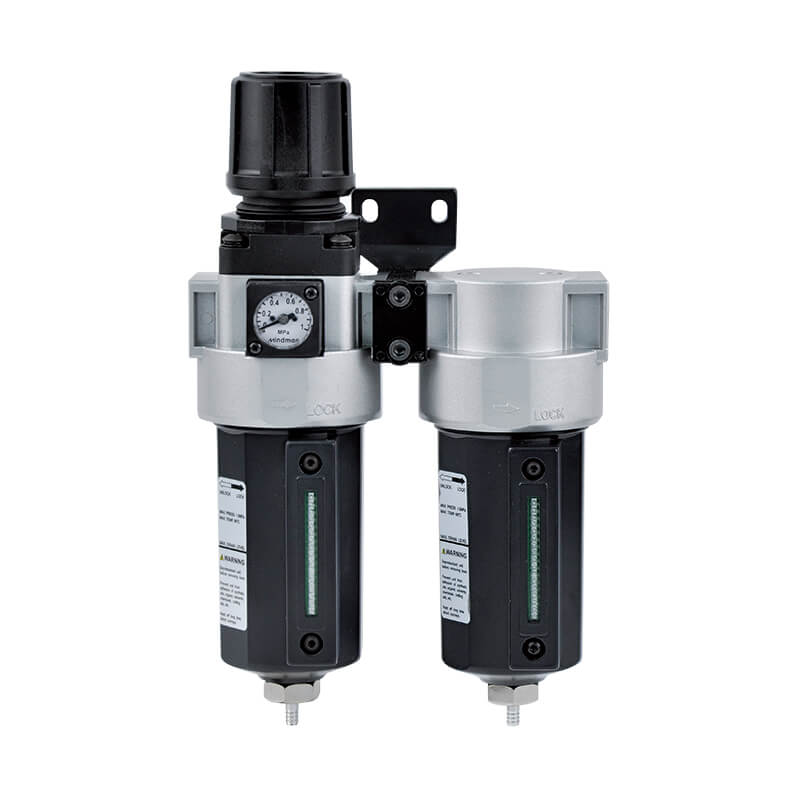

Mindman MAFRF401AD Series: Air Preparation Unit (Precision Filter Regulator) - MAFRF401AD-10A-W-HAR-NPT

Description

Air Preparation Unit (Precision Filter Regulator),Filtration Rating:5μm+0.3μm,Port Size:10A(3/8),Colour:Grey & White,Type:High Pressure,Pressure Gauge:Pressure Gauge Manifold (A-MAR401),Drain Valve:Semi-Auto Drain,Flow Direction:Right → Left,Digital Pressure Sensor:Without,Bracket:L-Type,Port Thread:NPT Thread

Features

  • Port size code: 8A, 10A, 15A
  • Port sizes: 1/4, 3/8, 1/2
  • Maximum operating pressure (※): 0.05~1.5 MPa
  • Pressure setting range: standard type 0.1~0.85 MPa; high-pressure type 0.1~1.5 MPa
  • Proof pressure: 2 MPa
  • Ambient temperature: -5~+60°C (non-freezing)
  • Filtration rating: 5μm+0.3μm
Product form

Air Preparation Unit (Precision Filter Regulator),Filtration Rating:5μm+0.3μm,Port Size:10A(3/8),Colour:Grey & White,Type:High Pressure,Pressure Gauge:Pressure Gauge Manifold (A-MAR401),Drain Valve:Semi-Auto Drain,Flow Direction:Right → Left,Digital... Read more

SKU: MAFRF401AD-10A-W-HAR-NPT

$129.92 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Air Preparation Unit (Precision Filter Regulator),Filtration Rating:5μm+0.3μm,Port Size:10A(3/8),Colour:Grey & White,Type:High Pressure,Pressure Gauge:Pressure Gauge Manifold (A-MAR401),Drain Valve:Semi-Auto Drain,Flow Direction:Right → Left,Digital Pressure Sensor:Without,Bracket:L-Type,Port Thread:NPT Thread

    Features

    • Port size code: 8A, 10A, 15A
    • Port sizes: 1/4, 3/8, 1/2
    • Maximum operating pressure (※): 0.05~1.5 MPa
    • Pressure setting range: standard type 0.1~0.85 MPa; high-pressure type 0.1~1.5 MPa
    • Proof pressure: 2 MPa
    • Ambient temperature: -5~+60°C (non-freezing)
    • Filtration rating: 5μm+0.3μm
