Mindman MAER210 Series: Air Preparation Unit (Electro-Pneumatic Proportional Valve) - MAER210-10A-5K-102-B1L3CS-G

Description

Air Preparation Unit (Electro-Pneumatic Proportional Valve),Port Size Code:10A 3/8,Pressure Range:0.5 MPa,Communication Protocol:RS-232,Pressure Display Unit:kgf/cm2,Bracket:L-Type,Power Cable:Right Angle Type 3m,Communication Cable:Straight Type 3m,Port Thread:G Thread

Features

  • Stepless pressure control of compressed air by means of an electrical proportional signal.
  • Simplifies the complex circuits normally built to achieve multi-stage pressure control.
  • The MAER210 can be combined modularly with the MA**302 series.
  • Built-in microcomputer PID control algorithm for high-precision pressure control.
  • Maximum flow rate 1500 l/min (supply pressure 1.0 MPa, set to 0.6 MPa).
  • Complies with IP65 and CE certification requirements.
Product form

Air Preparation Unit (Electro-Pneumatic Proportional Valve),Port Size Code:10A 3/8,Pressure Range:0.5 MPa,Communication Protocol:RS-232,Pressure Display Unit:kgf/cm2,Bracket:L-Type,Power Cable:Right Angle Type 3m,Communication Cable:Straight Type... Read more

SKU: MAER210-10A-5K-102-B1L3CS-G

$503.00 Excl. VAT

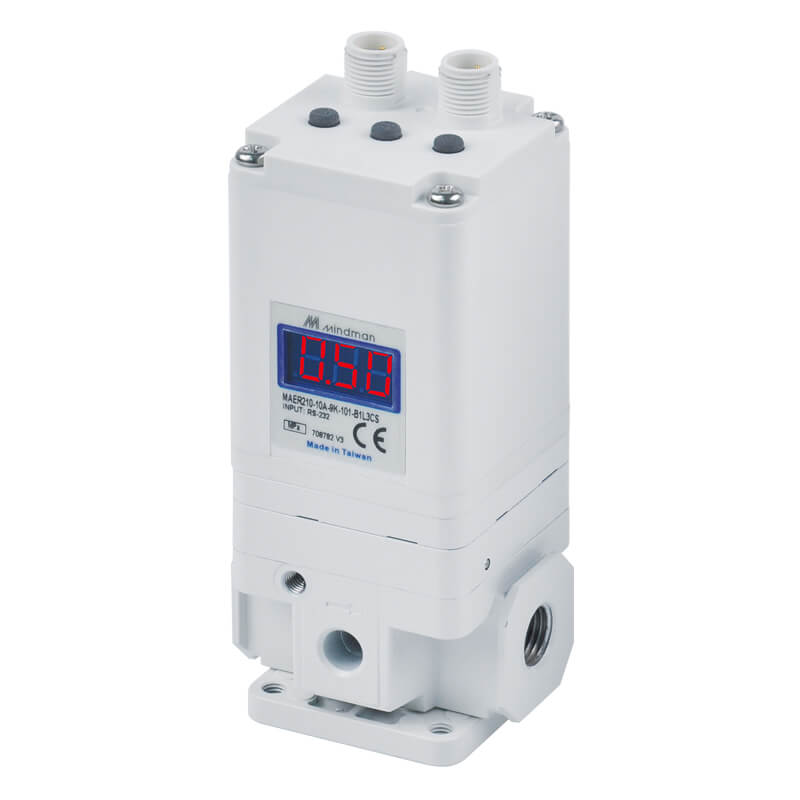

    • Image may not be representative of actual product.

    Description

    Air Preparation Unit (Electro-Pneumatic Proportional Valve),Port Size Code:10A 3/8,Pressure Range:0.5 MPa,Communication Protocol:RS-232,Pressure Display Unit:kgf/cm2,Bracket:L-Type,Power Cable:Right Angle Type 3m,Communication Cable:Straight Type 3m,Port Thread:G Thread

    Features

    • Stepless pressure control of compressed air by means of an electrical proportional signal.
    • Simplifies the complex circuits normally built to achieve multi-stage pressure control.
    • The MAER210 can be combined modularly with the MA**302 series.
    • Built-in microcomputer PID control algorithm for high-precision pressure control.
    • Maximum flow rate 1500 l/min (supply pressure 1.0 MPa, set to 0.6 MPa).
    • Complies with IP65 and CE certification requirements.
