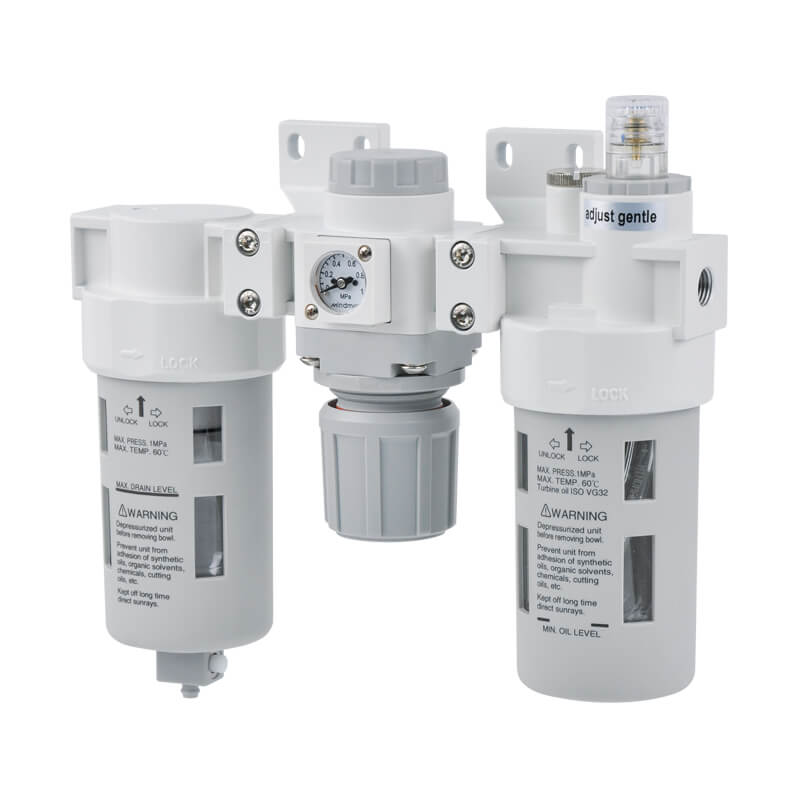

Mindman MACT403 Series: Air Preparation Unit (FRL Combination) - MACT403-10A-CDFPR-T8-G

Description

Air Preparation Unit (FRL Combination),Port Size:3/8,Bowl Material:PC Bowl,Pressure Gauge:External Pressure Gauge PG-40 + Manifold,Drain Valve:Auto Drain Valve FMRF300,Liquid Level Switch:With Level Switch,Pressure Sensor:Pressure Sensor MPS Series,Flow Direction:Right → Left,Digital Pressure Sensor:Without,Filtration Rating:40μm,Branch Port Size:T-Type Connection Block 1/4,Port Thread:G Thread

Features

  • Assemblies: MAF403, MAR403, MAL403
  • Port size codes: 8A, 10A, 15A
  • Port sizes: 1/4, 3/8, 1/2
  • Fluid: air
  • Operating pressure range (※): 0.05~1 MPa
  • Set pressure range: 0.1~0.85 MPa
  • Proof pressure: 1.5 MPa
  • Ambient temperature: -5~+60°C (non-freezing)
  • Filtration rating: standard 40μm; optional 5μm
Product form

Air Preparation Unit (FRL Combination),Port Size:3/8,Bowl Material:PC Bowl,Pressure Gauge:External Pressure Gauge PG-40 + Manifold,Drain Valve:Auto Drain Valve FMRF300,Liquid Level Switch:With... Read more

SKU: MACT403-10A-CDFPR-T8-G

$341.80 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Air Preparation Unit (FRL Combination),Port Size:3/8,Bowl Material:PC Bowl,Pressure Gauge:External Pressure Gauge PG-40 + Manifold,Drain Valve:Auto Drain Valve FMRF300,Liquid Level Switch:With Level Switch,Pressure Sensor:Pressure Sensor MPS Series,Flow Direction:Right → Left,Digital Pressure Sensor:Without,Filtration Rating:40μm,Branch Port Size:T-Type Connection Block 1/4,Port Thread:G Thread

    Features

    • Assemblies: MAF403, MAR403, MAL403
    • Port size codes: 8A, 10A, 15A
    • Port sizes: 1/4, 3/8, 1/2
    • Fluid: air
    • Operating pressure range (※): 0.05~1 MPa
    • Set pressure range: 0.1~0.85 MPa
    • Proof pressure: 1.5 MPa
    • Ambient temperature: -5~+60°C (non-freezing)
    • Filtration rating: standard 40μm; optional 5μm
