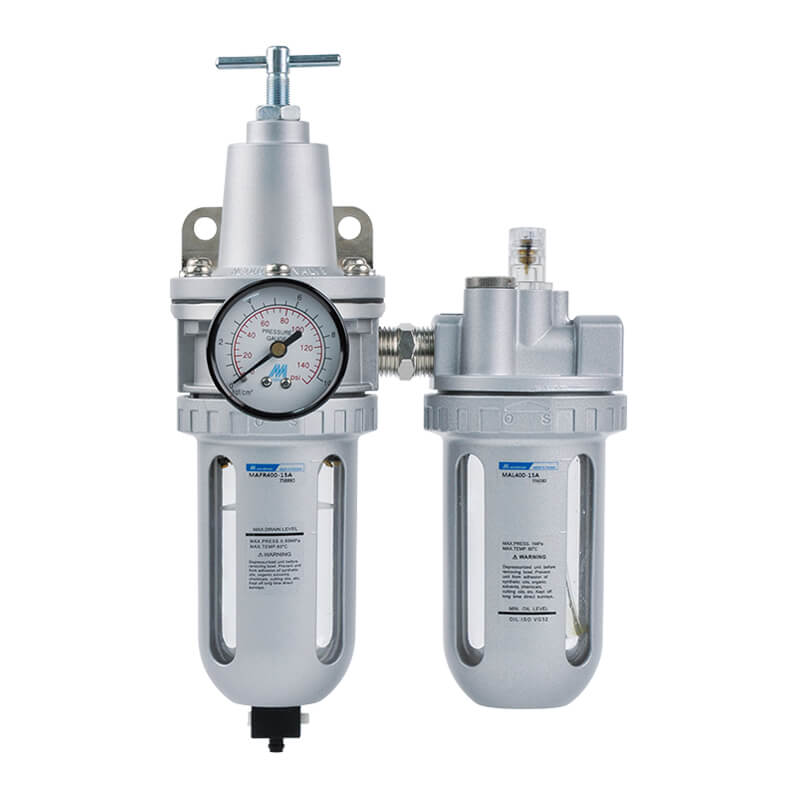

Mindman MACP400 Series: Air Preparation Unit (FRL Combination) - MACP400-10A-5u

Description

Air Preparation Unit (FRL Combination),Port Size:3/8,Bowl Material:PC Bowl,Drain Valve:Semi-Auto Drain,Flow Direction:Left → Right,Filtration Rating:5μm,Port Thread:Rc Thread

Features

  • Assemblies: MAFR400, MAL400
  • Port size codes: 8A, 10A, 15A
  • Port sizes: 1/4, 3/8, 1/2
  • Fluid: air
  • Operating pressure range (※): 0.05~1 MPa
  • Set pressure range: 0.05~0.85 MPa
  • Proof pressure: 1.5 MPa
  • Ambient temperature: -5~+60°C (non-freezing)
  • Filtration rating: standard 40μm; optional 5μm
Product form

Air Preparation Unit (FRL Combination),Port Size:3/8,Bowl Material:PC Bowl,Drain Valve:Semi-Auto Drain,Flow Direction:Left → Right,Filtration Rating:5μm,Port Thread:Rc ThreadFeatures Assemblies: MAFR400, MAL400 Port... Read more

SKU: MACP400-10A-5u

$128.80 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Air Preparation Unit (FRL Combination),Port Size:3/8,Bowl Material:PC Bowl,Drain Valve:Semi-Auto Drain,Flow Direction:Left → Right,Filtration Rating:5μm,Port Thread:Rc Thread

    Features

    • Assemblies: MAFR400, MAL400
    • Port size codes: 8A, 10A, 15A
    • Port sizes: 1/4, 3/8, 1/2
    • Fluid: air
    • Operating pressure range (※): 0.05~1 MPa
    • Set pressure range: 0.05~0.85 MPa
    • Proof pressure: 1.5 MPa
    • Ambient temperature: -5~+60°C (non-freezing)
    • Filtration rating: standard 40μm; optional 5μm
