Description

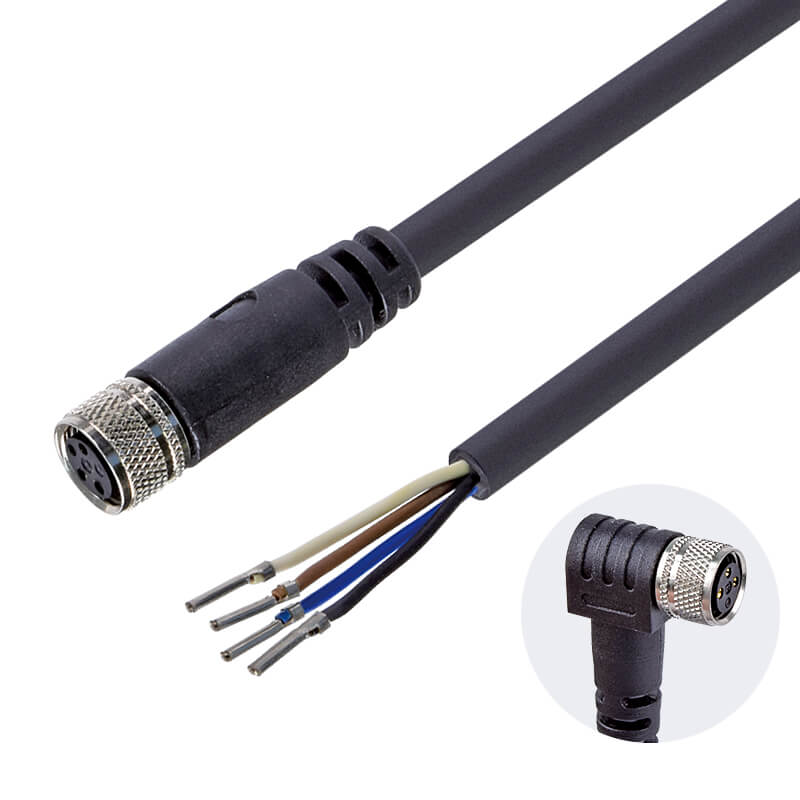

Cable with Connector,Connector Type:Straight Female Connector - Lead Out,Number of Contacts:3Pin,Cable Material and Outer Diameter:ø4.5 PUR,Cable Length:5000mm,Rated Voltage:60V DC/AC,Rated Current:3A,Terminal Material:Gold-Plated Copper,Insulated Terminal Material:PA,Fitting Body Material:PP,Fitting Colour:Black,Wire Colour:Black,Wire Specification:24AWG,Operating Temperature Range:-20°C to +80°C (No Freezing),Enclosure Protection Rating:IP67
Features
- Rated voltage: 60V DC/AC
- Rated current: 3A, 1.5A
- Terminal material: gold-plated copper
- Terminal overmould material: PA
- Connector body material: PP
- Connector body colour: black
- Cable specification and material: ø4.5, PVC / ø4.5, PUR
- Cable colour: grey (PVC), black (PUR)
- Conductor size: 24AWG
- Operating temperature range: -20°C~+80°C (non-freezing)
- Protection class: IEC60529 IP 67
