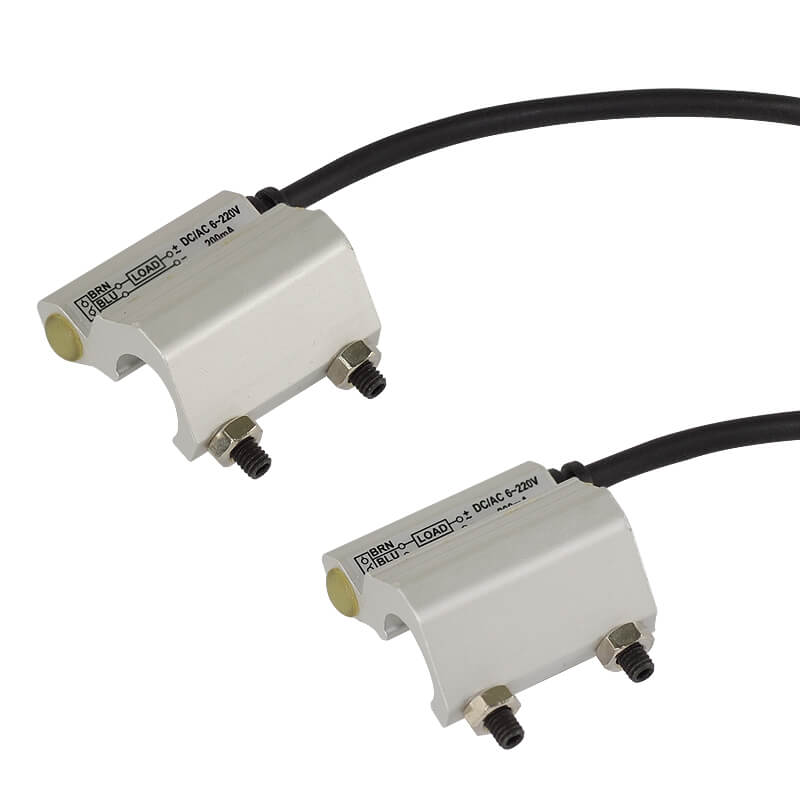

Mindman LN01A Series: Sensor (Solid State PNP) - LN01A-P-QD

Description

Sensor,Solid State PNP,Lead Wire Outlet:Connector Type

Features

  • Wiring: LN0*A: 2-wire; LN0*A-N, LN0*A-P: 3-wire
  • Switching logic: LN0*A: normally open; LN0*A-N, LN0*A-P: solid state, normally open
  • Contact type: LN0*A: reed contact; LN0*A-N: solid state NPN; LN0*A-P: solid state PNP
  • Operating voltage range: LN0*A: 5~240V DC/AC; LN0*A-N, LN0*A-P: 10~30V DC
  • Maximum switching current: LN0*A: 100mA max.; LN0*A-N, LN0*A-P: 200mA max.
  • Contact capacity: LN0*A: 10W max.; LN0*A-N, LN0*A-P: 6W max. (※1)
  • Current consumption: LN0*A-N, LN0*A-P: OFF 7mA (24V) / ON 20mA (24V) max.
  • Internal voltage drop: LN0*A: 3V max.; LN0*A-N, LN0*A-P: 0.5V@200mA max.
Product form

Sensor,Solid State PNP,Lead Wire Outlet:Connector TypeFeatures Wiring: LN0*A: 2-wire; LN0*A-N, LN0*A-P: 3-wire Switching logic: LN0*A: normally open; LN0*A-N, LN0*A-P: solid... Read more

SKU: LN01A-P-QD

$13.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Sensor,Solid State PNP,Lead Wire Outlet:Connector Type

    Features

    • Wiring: LN0*A: 2-wire; LN0*A-N, LN0*A-P: 3-wire
    • Switching logic: LN0*A: normally open; LN0*A-N, LN0*A-P: solid state, normally open
    • Contact type: LN0*A: reed contact; LN0*A-N: solid state NPN; LN0*A-P: solid state PNP
    • Operating voltage range: LN0*A: 5~240V DC/AC; LN0*A-N, LN0*A-P: 10~30V DC
    • Maximum switching current: LN0*A: 100mA max.; LN0*A-N, LN0*A-P: 200mA max.
    • Contact capacity: LN0*A: 10W max.; LN0*A-N, LN0*A-P: 6W max. (※1)
    • Current consumption: LN0*A-N, LN0*A-P: OFF 7mA (24V) / ON 20mA (24V) max.
    • Internal voltage drop: LN0*A: 3V max.; LN0*A-N, LN0*A-P: 0.5V@200mA max.
