Mindman 20-MCRQ Series: Rotary Cylinder (Side Piping Type) - 20-MCRQ-12A-E

Description

Rotary Cylinder (Side Piping Type),Cylinder Bore:ø12mm,Angle Adjustment:Face Adjusting Bolt,Piping Type:Side Piping Type,Port Thread:M5×0.8

Features

  • Centre locating hole and datum hole ensure accurate positioning.
  • The angle at the work table is set by an angle adjusting bolt over a range of 0°~190°.
  • The internal design uses twin racks driving a single pinion to produce the rotary motion.
  • Hollow shaft design simplifies wiring and piping and makes work table mounting easier.
  • Shock absorbers can be specified as the cushioning device.
  • Magnet fitted as standard across the entire series.
Product form

Rotary Cylinder (Side Piping Type),Cylinder Bore:ø12mm,Angle Adjustment:Face Adjusting Bolt,Piping Type:Side Piping Type,Port Thread:M5×0.8Features Centre locating hole and datum hole ensure... Read more

SKU: 20-MCRQ-12A-E

$62.20 Excl. VAT

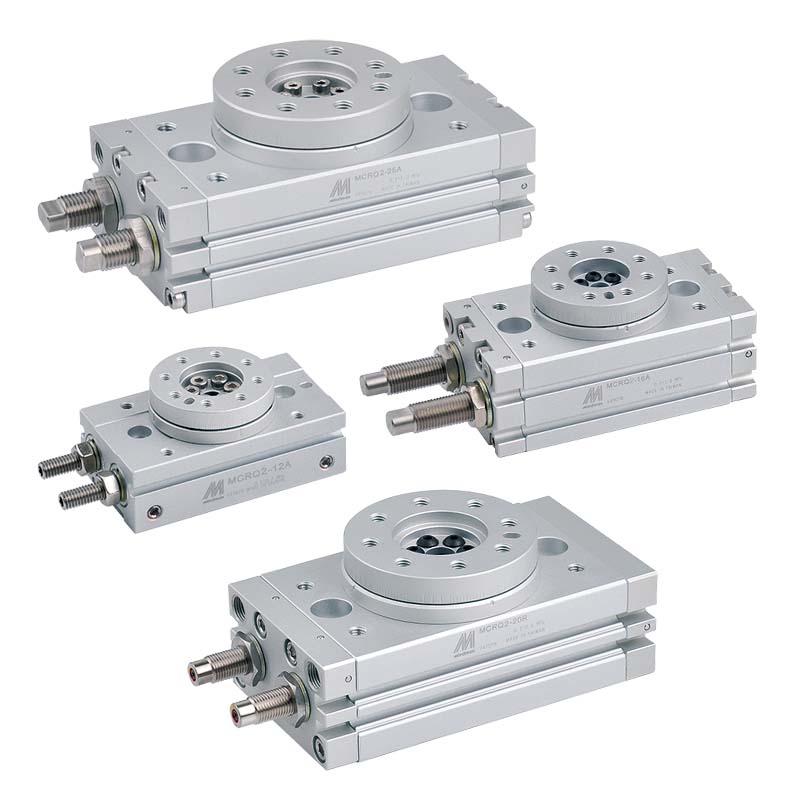

    • Image may not be representative of actual product.

    Description

    Rotary Cylinder (Side Piping Type),Cylinder Bore:ø12mm,Angle Adjustment:Face Adjusting Bolt,Piping Type:Side Piping Type,Port Thread:M5×0.8

    Features

    • Centre locating hole and datum hole ensure accurate positioning.
    • The angle at the work table is set by an angle adjusting bolt over a range of 0°~190°.
    • The internal design uses twin racks driving a single pinion to produce the rotary motion.
    • Hollow shaft design simplifies wiring and piping and makes work table mounting easier.
    • Shock absorbers can be specified as the cushioning device.
    • Magnet fitted as standard across the entire series.
