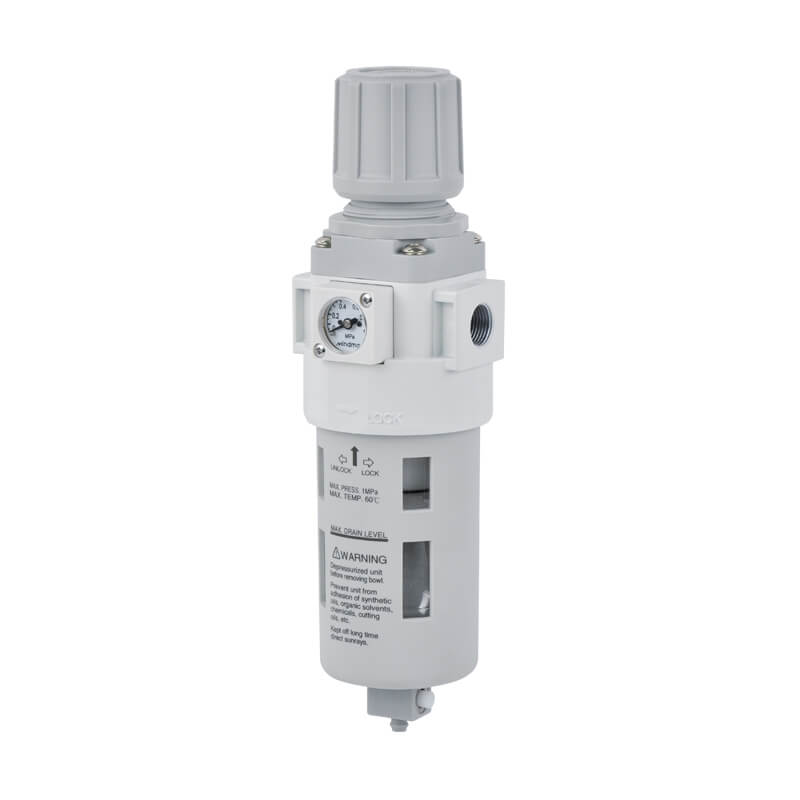

Mindman 20-MAFR403 Series: Air Preparation Unit (Filter Regulator) - 20-MAFR403K-8A-Q-ND-G

Description

Air Preparation Unit (Filter Regulator),Type:Reverse Flow,Port Size:1/4,Relief Type:Non-Relieving,Bowl Material:Nylon Bowl,Drain Valve:Auto Drain Valve (20-FMRF300),Digital Pressure Sensor:Without,Filtration Rating:40μm,Bracket:Without,Port Thread:G Thread

Features

  • Port size codes: 8A, 10A, 15A
  • Port sizes: 1/4, 3/8, 1/2
  • Fluid: air
  • Operating pressure range (※): 0.05~1 MPa
  • Set pressure range: 0.1~0.85 MPa
  • Proof pressure: 1.5 MPa
  • Ambient temperature: -5~+60°C (non-freezing)
  • Filtration rating: standard 40μm, optional 5μm
Product form

Air Preparation Unit (Filter Regulator),Type:Reverse Flow,Port Size:1/4,Relief Type:Non-Relieving,Bowl Material:Nylon Bowl,Drain Valve:Auto Drain Valve (20-FMRF300),Digital Pressure Sensor:Without,Filtration Rating:40μm,Bracket:Without,Port Thread:G ThreadFeatures Port... Read more

SKU: 20-MAFR403K-8A-Q-ND-G

$107.00 Excl. VAT

    • Image may not be representative of actual product.

    Description

    Air Preparation Unit (Filter Regulator),Type:Reverse Flow,Port Size:1/4,Relief Type:Non-Relieving,Bowl Material:Nylon Bowl,Drain Valve:Auto Drain Valve (20-FMRF300),Digital Pressure Sensor:Without,Filtration Rating:40μm,Bracket:Without,Port Thread:G Thread

    Features

    • Port size codes: 8A, 10A, 15A
    • Port sizes: 1/4, 3/8, 1/2
    • Fluid: air
    • Operating pressure range (※): 0.05~1 MPa
    • Set pressure range: 0.1~0.85 MPa
    • Proof pressure: 1.5 MPa
    • Ambient temperature: -5~+60°C (non-freezing)
    • Filtration rating: standard 40μm, optional 5μm
