Description
Coil category: DIN socket coil,Coil inner diameter: coil specification (inner diameter 酶8.0mm),Standard voltage: DC24V,
Click to download the Airtac catalog
Product Features

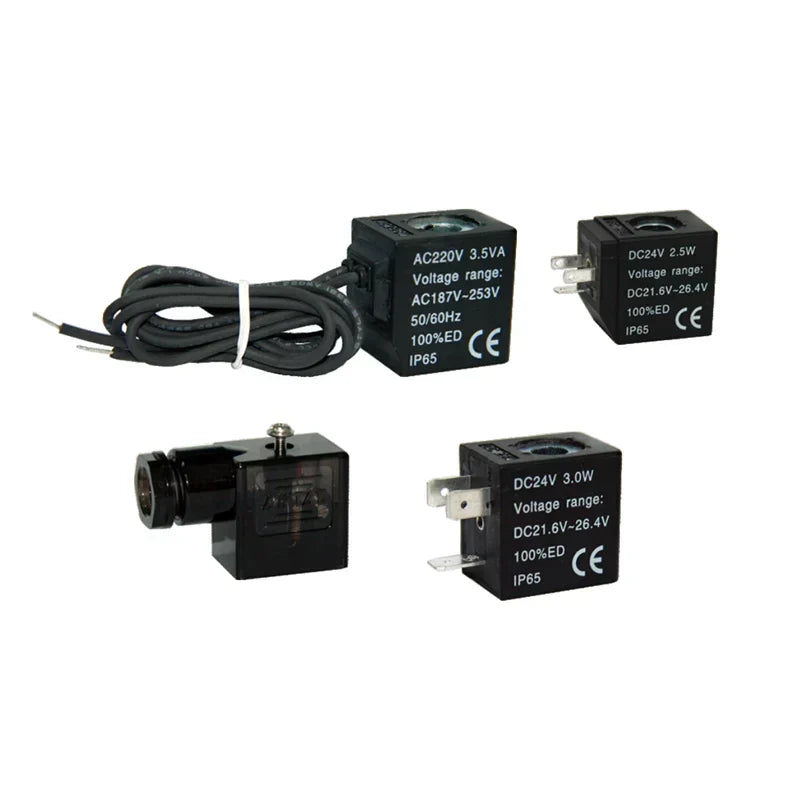

Specifications for Solenoid Valve Washer Coils
For 4M110, 4M120 Series
For 4V110, 4V120,4V130,Series
For 3V110, 3V120 Series
(8.0mm Orifice Solenoid Valves):Available in terminal and washer coil types.
Multiple voltage options:(A: AC220V),(B: DC24V),(C: AC110V),(E: DC24V),(F: DC12V)
1.DC coils have polarity indicators on the terminals.Wiring instructions:鈥�鈥�should be connected to thepositiveterminal,鈥�鈥漵hould be connected to the negative terminal.
2.If connected incorrectly, the indicator light will not turn on, but the valve will still function properly.
